Klevacool™ KavityKoola Fans 90mm Twin
Klevacool™ KavityKoola Fans 90mm Twin
Efficient Ventilation for Drawer-Style Fridges, RV Inverters & Electronics
📦 ORDERS OVER $300 SHIP FREE!
🚚 TRACKED POSTAGE AUSTRALIA WIDE!
🛠 3 YEAR WARRANTY!
Keep your RV’s electronics and appliances cool with the Klevacool™ Kavity Koola Twin Enclosure Fan Kit — a quiet, smart cooling system built for the real conditions caravanners face.
Perfect for drawer-style fridges, inverters, battery chargers and other enclosed gear, this twin 90mm fan setup offers whisper-quiet performance, low power draw, and fully adjustable digital temperature control — so you can set it once and forget it.
Built tough using matte-finished ABS plastic and stainless steel, the front panel looks clean in any setup and comes complete with matching air inlet vents, a built-in power switch, and all the gear you need to DIY it properly — including a cutting template and detailed install instructions.
Designed and manufactured right here in Australia, the Klevacool Kavity Koola enclosure fan is a no-fuss upgrade that just works — keeping your fridge and electronics running smooth on every trip.
📜 Design Registration: 202415021
Features:
Internal Use Only: Designed for indoor use in RVs; not waterproof.
Adjustable Temperature Control: Infinite adjustment for precise cooling.
Relocatable Temperature Probe: Includes 70cm extension for flexible probe positioning.
Low Power Consumption: Just 150mA draw to conserve energy.
Ultra-Quiet Operation: Whisper quiet, ideal for your RV experience.
Matt Finish: Elegant, modern surface finish for a sleek, professional appearance.
Full Protection: Equipped with fan guards to prevent damage during use.
Durable Construction: Made with tough ABS plastic and stainless steel hardware.
Australian Quality: Proudly designed and manufactured in Australia.
Installation Made Easy:
Comprehensive Instructions: Full, easy-to-follow instructions included.
Flexible Mounting: Includes intake vents, mounting hardware, and cutting templates for smooth installation.
Reliable Warranty:
Backed by a 3-year Klevacool warranty—fully tested before shipping.
Any questions prior to purchase of a kit will be promptly answered using our contact page.
Design Registration: 202415021

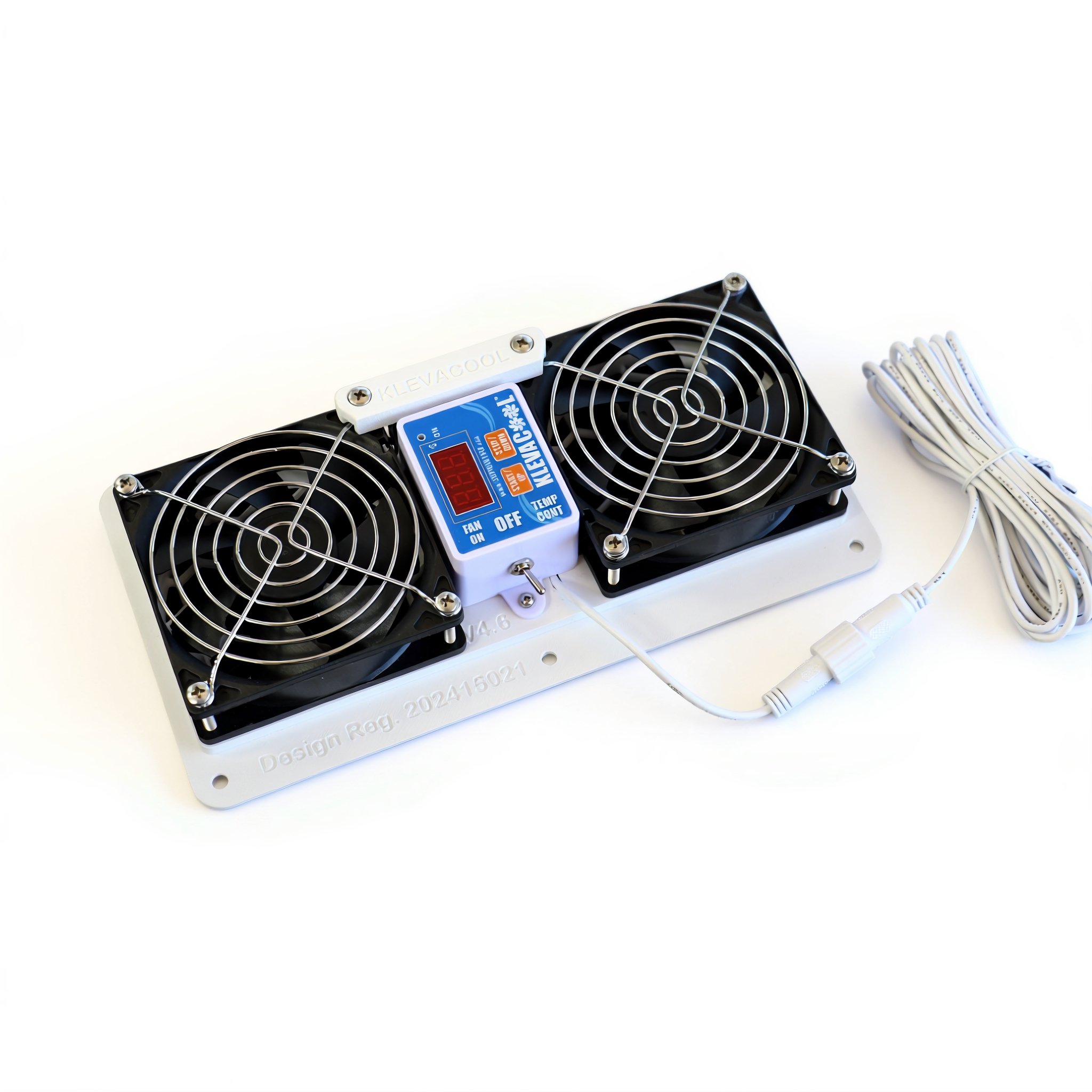

Twin 90mm Fans with Hidden Digital Controller
Features: Built-in digital controller with three modes: off, constant on, or temperature-controlled.
Sleek Design: Concealed controller with a matte finish for a professional look.
Operation: Fans run at constant speed, with an LED indicator to show fan operation.
Fans:
Twin Fans (90mm):
Bearing: Hydrodynamic.
Current Draw: 0.2A total (4.8Ah/day maximum).
Airflow: 31 CFM per fan (62 CFM total).
Ingress Rating: IP54.

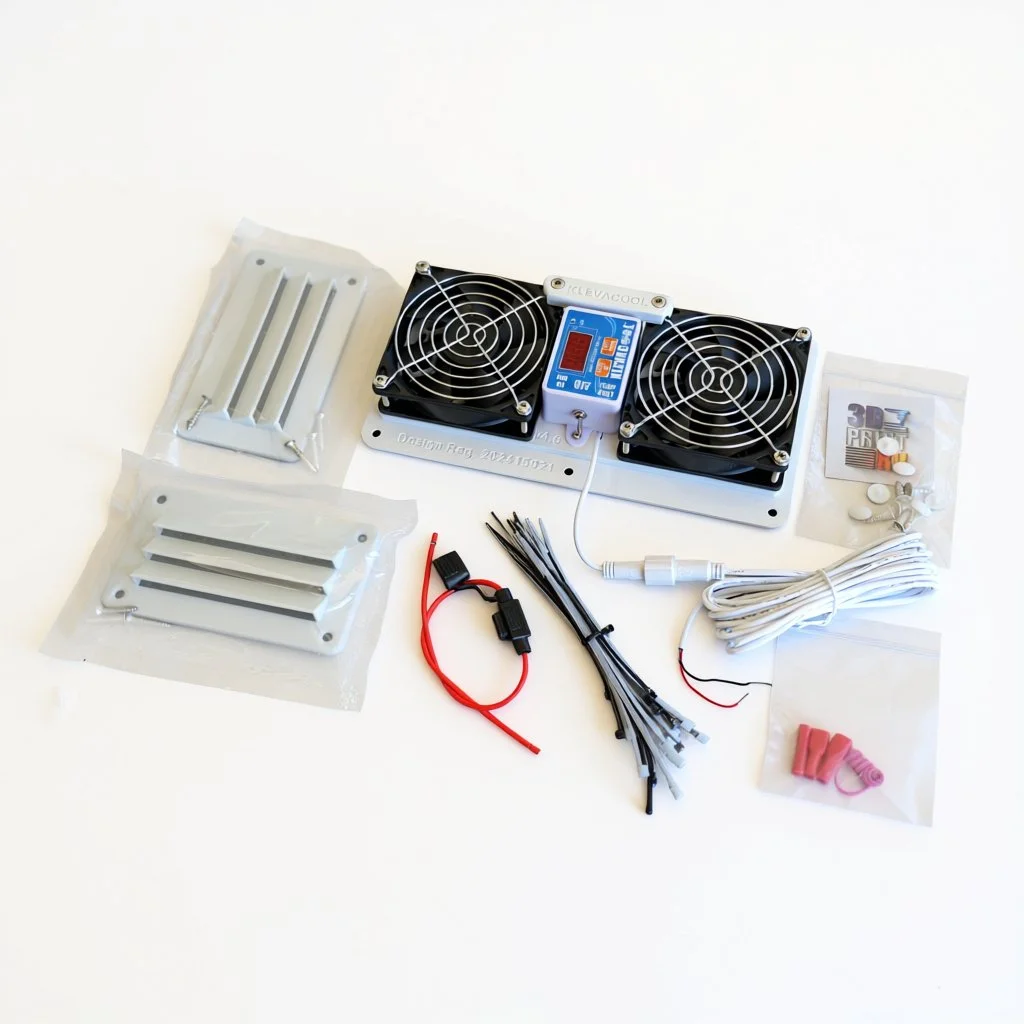

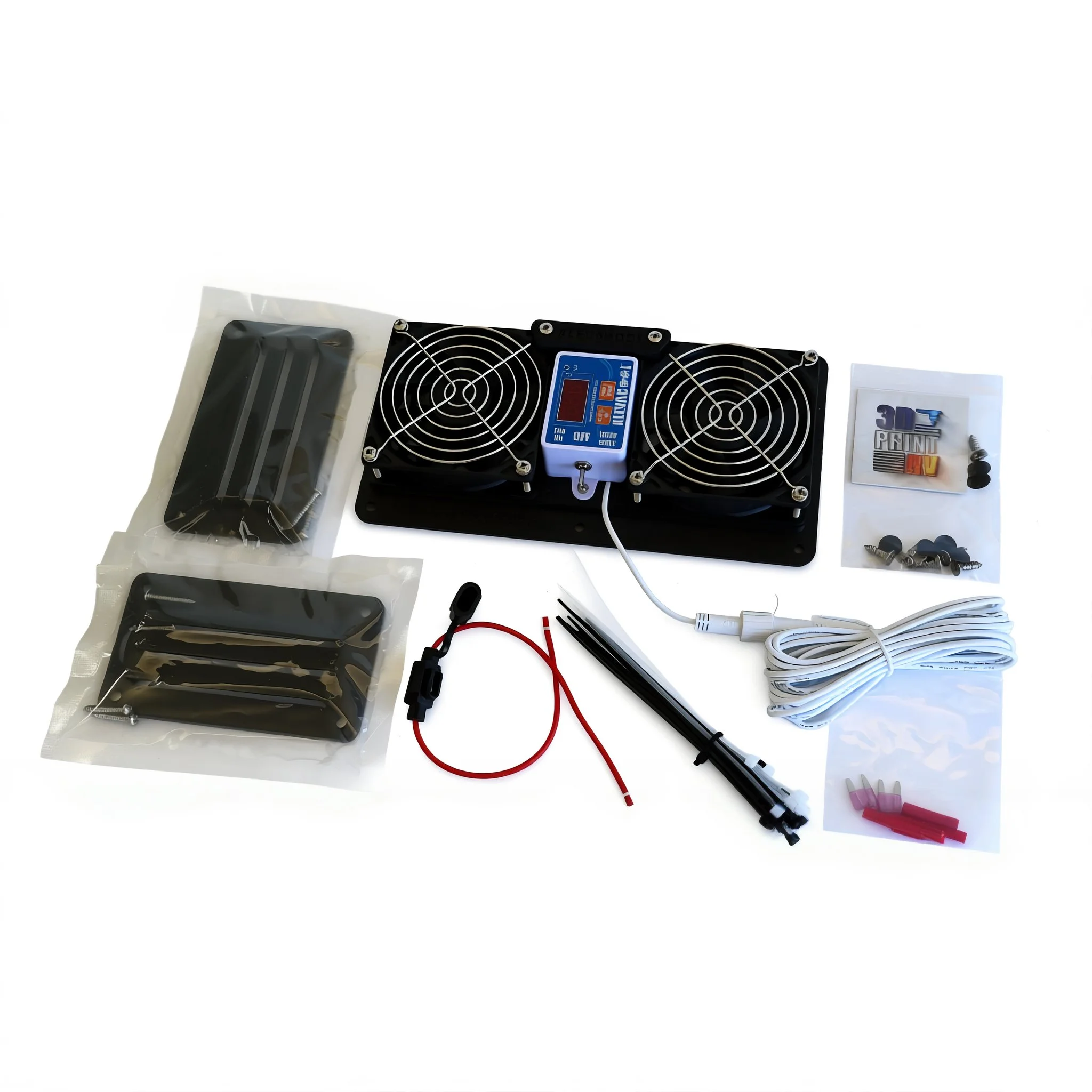

Included in the Kit:
1 x Klevacool™ KavityKoola Fan (Twin 90mm).
6 x Stainless steel mounting screws.
6 x screw cover caps (keeps things looking neat).
Cutting templates for fans & vents
2 x black or white vents & stainless steel mounting screws.
1 x Fuse Holder.
2 x 3A Fuses.
4 meters of wire for battery connection.
Zip ties (black and white) to match your vent color.
Detailed Installation Instructions.
Warranty and Support:
36-month warranty for peace of mind.
Fully tested before shipping.
Ready to keep your RV electronics cool and your fridge running smoothly?
Upgrade today with Klevacool™ Cavity Cooling Fans—designed for efficiency, reliability, and long-lasting performance.
Frequently asked questions
What's the difference between the Twin 90mm KavityKoola and the Single 120mm version?
The main difference is the mounting shape. Using two 90mm fans creates a thinner mounting planform, which can make the Twin 90mm version better suited to cavities where the available mounting space doesn't suit a larger single fan.
The twin-fan arrangement also provides some redundancy. If one fan fails, the second fan can continue operating until the failed fan can be replaced.
Why would I use two 90mm fans instead of one larger fan?
Primarily because of the available mounting dimensions. Two 90mm fans can be arranged in a thinner mounting planform than one larger fan, which may fit better in narrow or awkward cavities.
There's also an element of redundancy. If one fan fails, you've still got one fan operating to help keep air moving until the problem can be sorted.
What can I use the Twin 90mm KavityKoola fans to cool?
The Twin 90mm KavityKoola is designed to remove excess heat from enclosed cavities in caravans and RVs. It can be used around equipment such as compressor fridges, inverters, battery chargers and other devices that generate heat while operating.

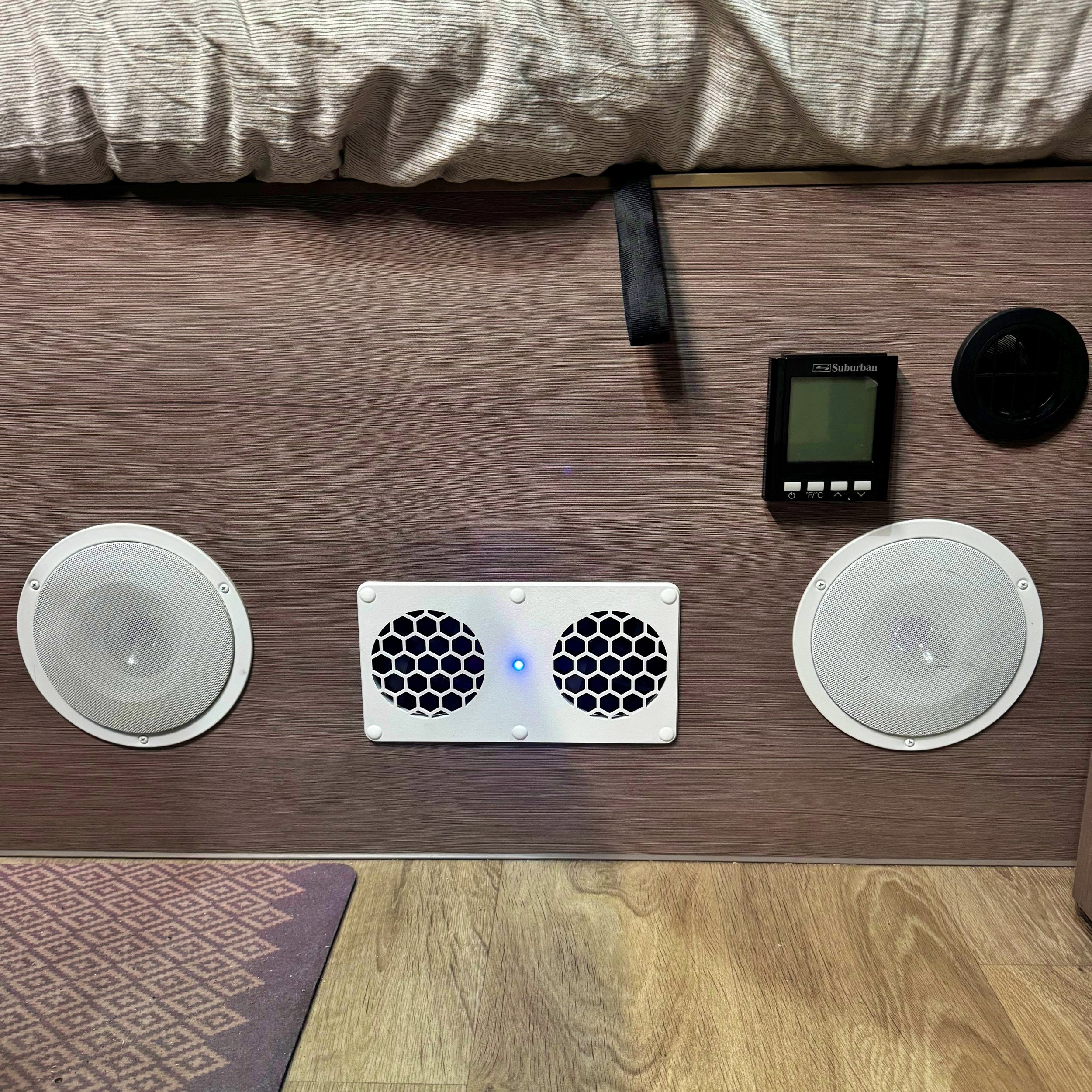

Can the Twin 90mm fans be mounted vertically or horizontally?
Yes. The twin-fan layout gives you more flexibility when working with the available cavity space, so the fans can be arranged to suit the installation.
The important part is creating a sensible airflow path through the cavity rather than simply moving air around one small area.
Does the Twin 90mm KavityKoola run automatically when the cavity gets hot?
Yes. The temperature controller monitors the cavity and operates the fans when cooling is required. They don't need to run continuously when the cavity temperature is already under control.
Where should I position the temperature probe?
The probe can remain in its mounting to monitor the ambient air temperature inside the cavity. It can also be removed and taped directly to equipment such as an inverter or battery charger if you'd rather monitor that device itself.
This gives you the choice between controlling the fans from general cavity temperature or directly from the temperature of the equipment being cooled.
Where should the inlet vents be positioned for the best airflow?
Position the inlet vents so incoming air has to travel around the equipment that needs cooling before reaching the exhaust fans. You want the air moving through the cavity, not taking the shortest possible route straight from an inlet vent to the fans.
If the inlet is too close to the fans, they may draw air from only a small section of the cabinet. That can leave the rest of the cavity with poor airflow and create hot spots around the equipment.
Do the Twin 90mm fans blow air into the cavity or extract hot air?
They're designed to extract hot air from the cavity. The fans draw heated air from inside the cabinet and exhaust it out, allowing cooler replacement air to enter through the inlet vents and move past the equipment being cooled.
