Klevacool™ KavityKoola Fans - Single 120mm
Klevacool™ KavityKoola Fans - Single 120mm
Efficient Ventilation for Drawer-Style Fridges, RV Inverters & Electronics
📦 ORDERS OVER $300 SHIP FREE!
🚚 TRACKED POSTAGE AUSTRALIA WIDE!
🛠 3 YEAR WARRANTY!
Keep your RV's electronics and appliances cool with Klevacool™ KavityKoola Enclosure Fans.
Designed and manufactured in Australia, these fans are perfect for drawer-style fridges, inverters, and battery chargers, providing efficient and quiet ventilation for reliable performance. Offering adjustable temperature control, whisper-quiet operation, and durable construction, perfect for maintaining optimal airflow in your RV.
Key Benefits:
Australian-Made Quality – Proudly designed and manufactured in Australia.
🤫 Whisper-Quiet Operation – Keep your RV quiet and comfortable with ultra-silent fans.
⚡ Energy Efficient – Low power consumption (150mA) for minimal energy impact.
💪 Durable Construction – Made from super-tough ABS plastic and stainless steel.
🛠 Simple Installation – Comes with all the necessary parts and easy-to-follow instructions.
Dimensional drawings are in the pictures.
Ready to ensure your RV appliances and fridge stay cool and well-ventilated?
Klevacool™ KavityKoola Enclosure Fans keep everything running smoothly with minimal fuss, all while maintaining ultra-quiet, efficient operation.
📜 Design Registrations: 202417476
Common Features:
Internal Use Only: Designed for indoor use in RVs; not waterproof.
Adjustable Temperature Control: Infinite adjustment for precise cooling.
Relocatable Temperature Probe: Includes 70cm extension for flexible probe positioning.
Low Power Consumption: Just 150mA draw to conserve energy.
Ultra-Quiet Operation: Whisper quiet, ideal for your RV experience.
Matt Finish: Elegant, modern surface finish for a sleek, professional appearance.
Full Protection: Equipped with fan guards to prevent damage during use.
Durable Construction: Made with tough ABS plastic and stainless steel hardware.
Australian Quality: Proudly designed and manufactured in Australia.
Installation Made Easy:
Comprehensive Instructions: Full, easy-to-follow instructions included.
Flexible Mounting: Includes intake vents, mounting hardware, and cutting templates for smooth installation.
Reliable Warranty:
Backed by a 3-year Klevacool warranty—fully tested before shipping.
Any questions prior to purchase of a kit will be promptly answered using our contact page.
Design Registrations: 202417476

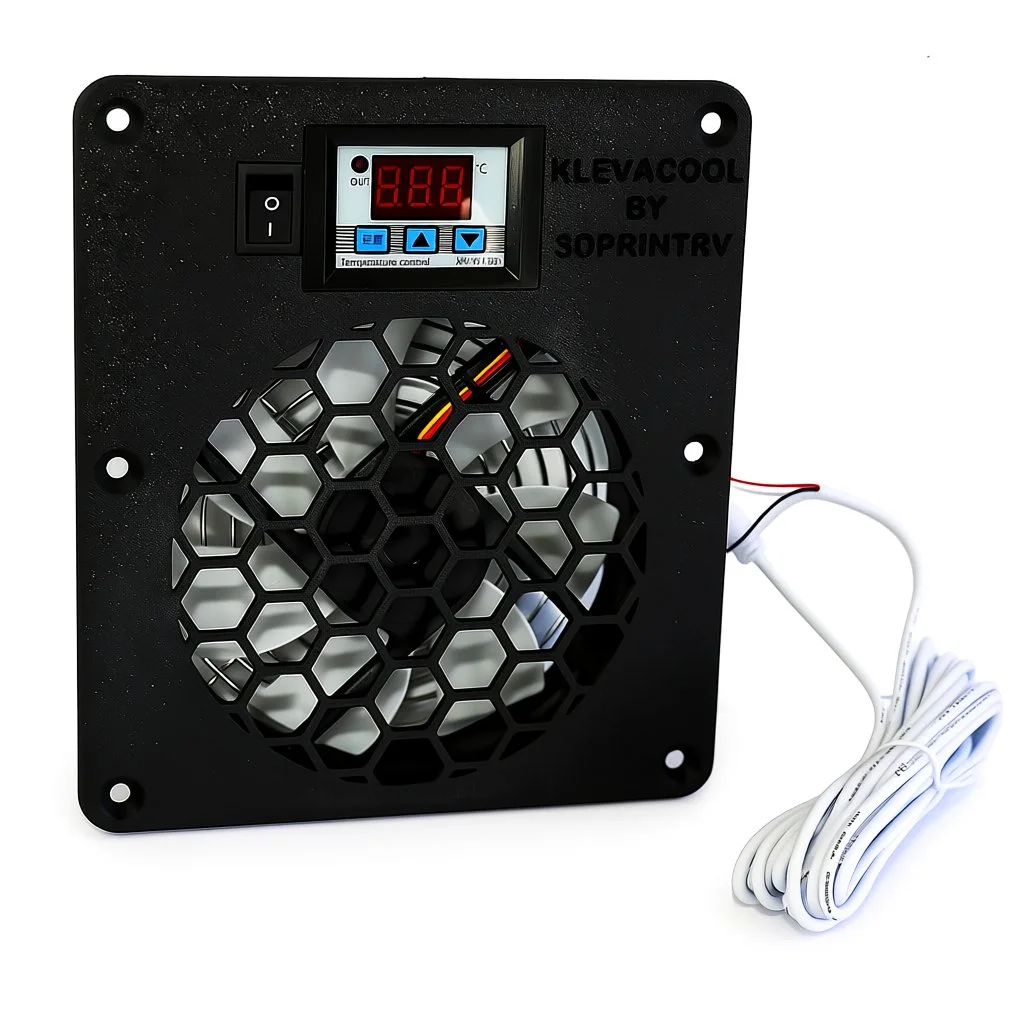

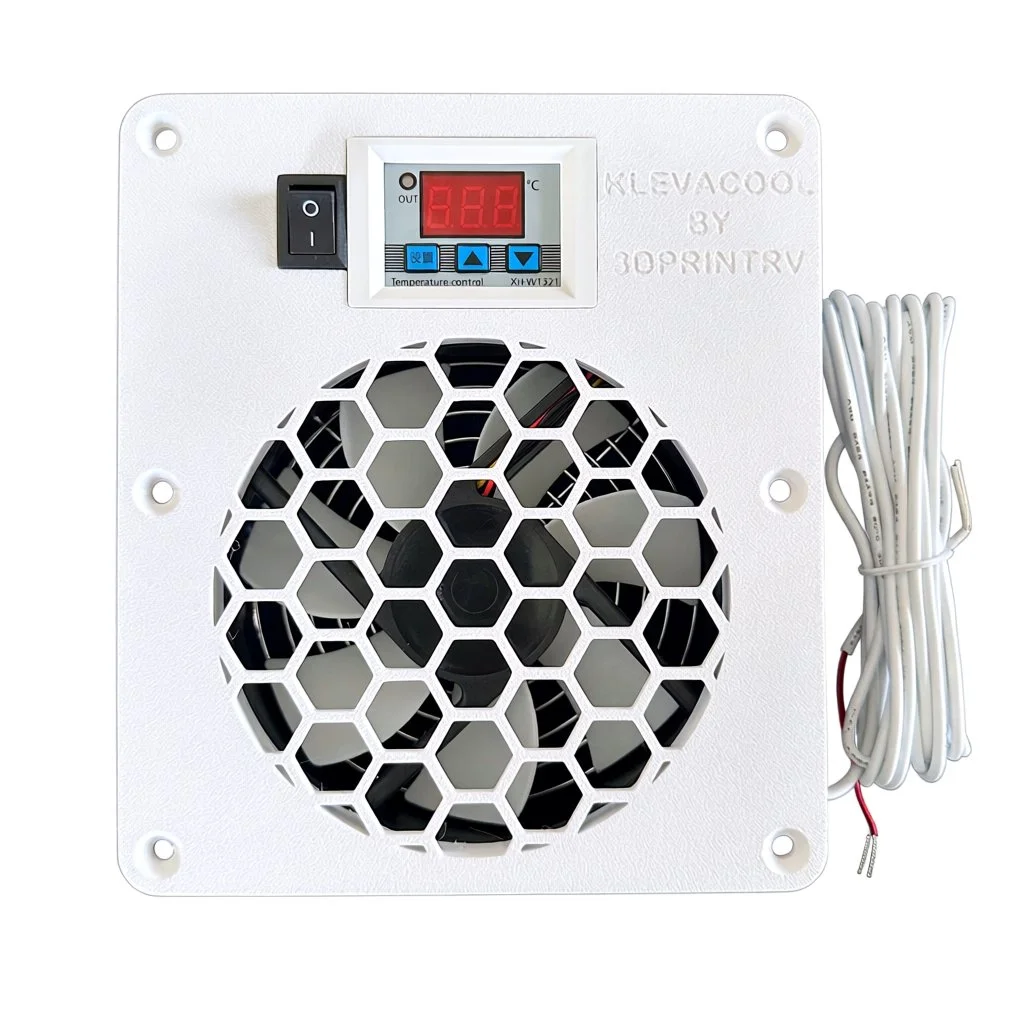

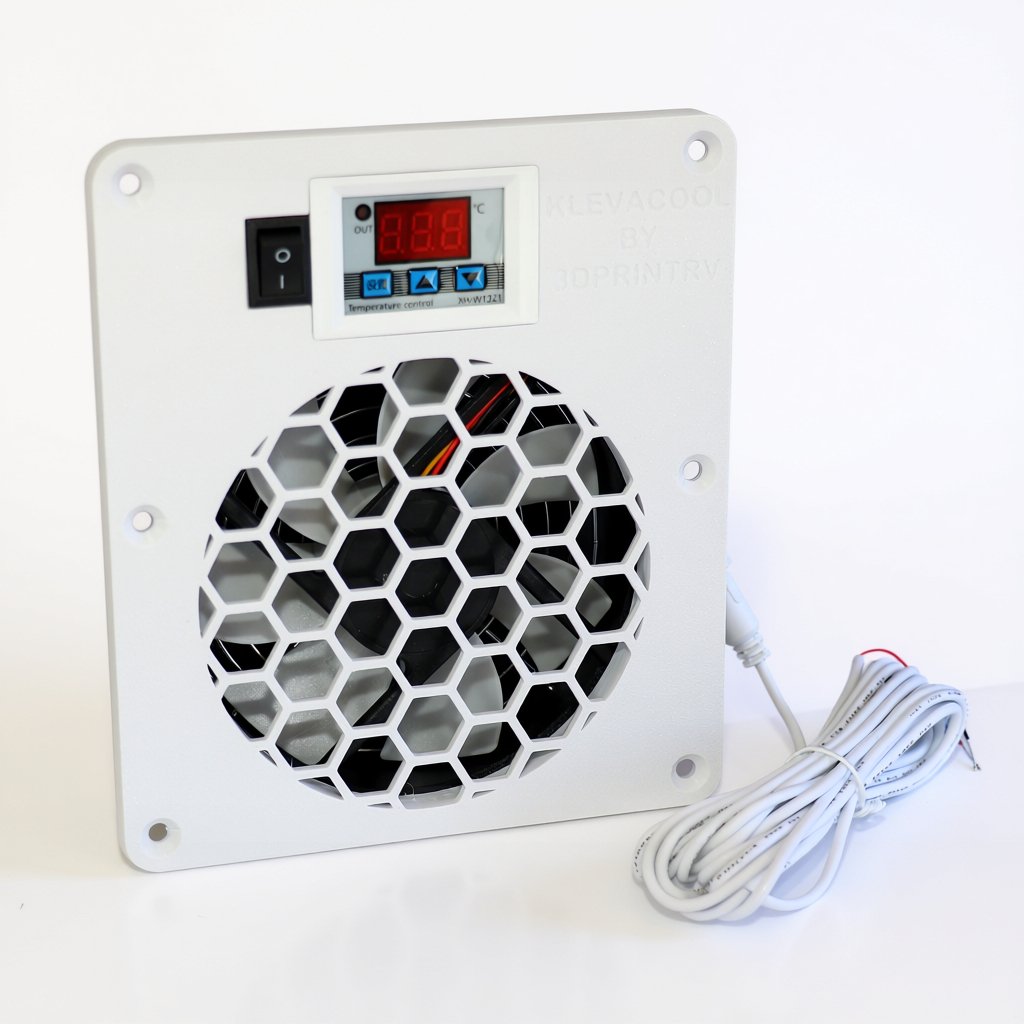

Single 120mm Fan with Front Panel Controls
Features: Visible digital controller with front-panel on/off switch and variable fan speed.
Sleek Look: Matt finish for an elegant, modern aesthetic.
Fans:
Single Fan (120mm):

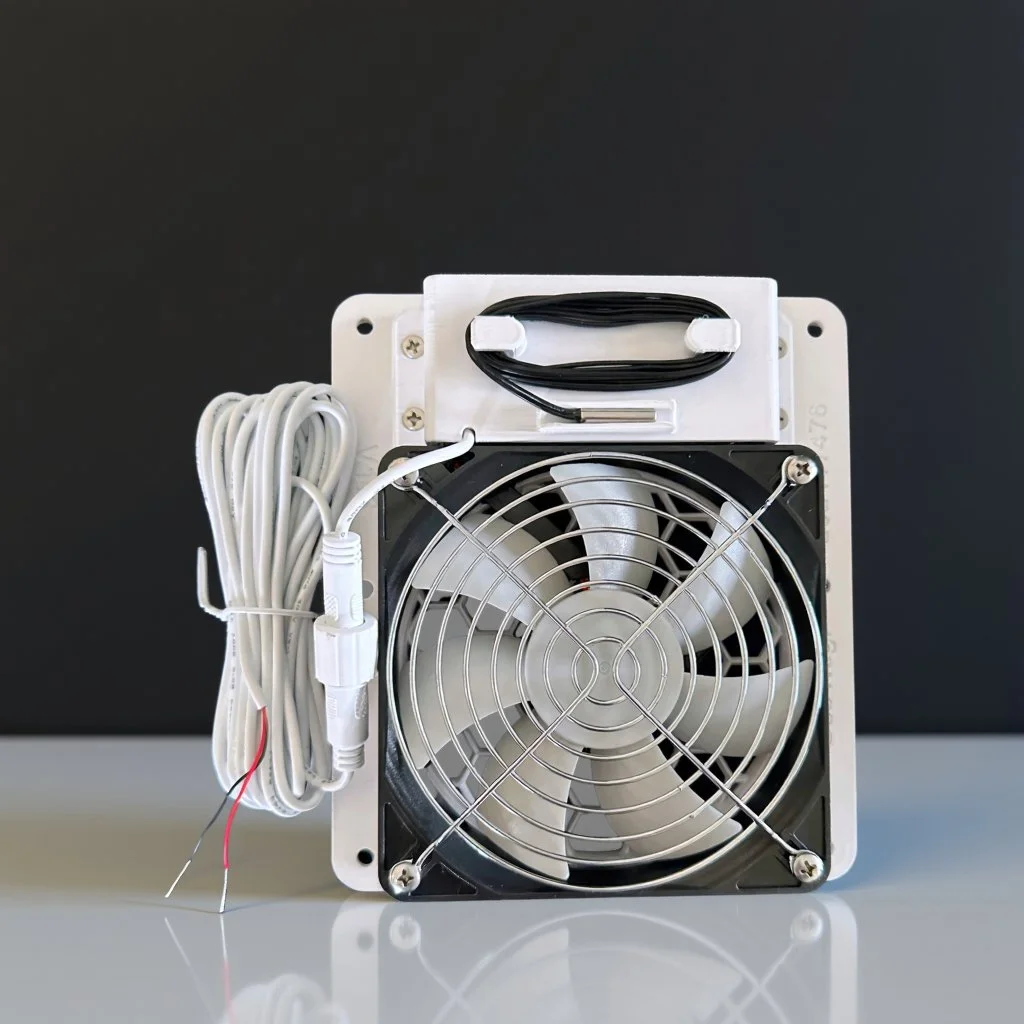

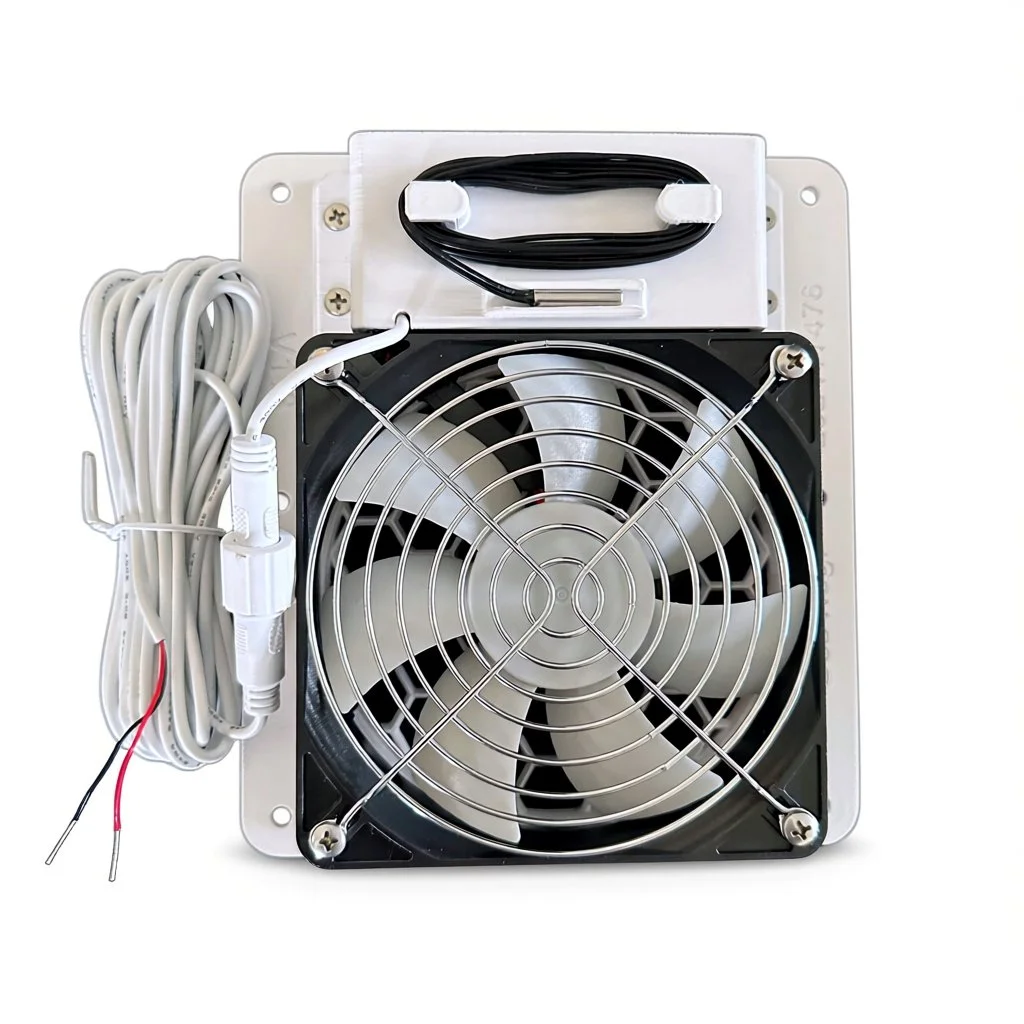

Bearing: Dual rubber-sealed ball bearings (IP68 rated).
Current Draw: 0.15A total (3.6Ah/day maximum).
Airflow: Moves 58 CFM (1640 L/min) of air.
Ingress Rating: IP68 for excellent dust and water protection.

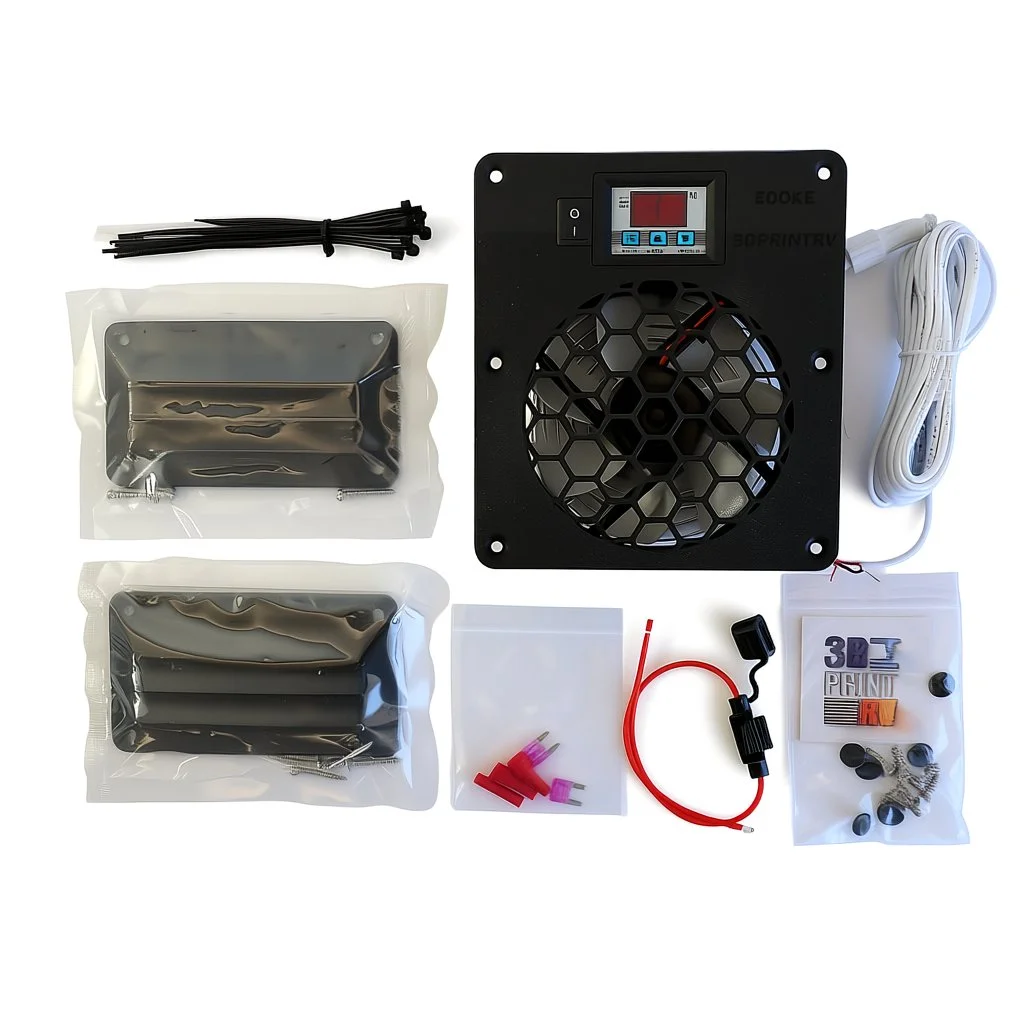

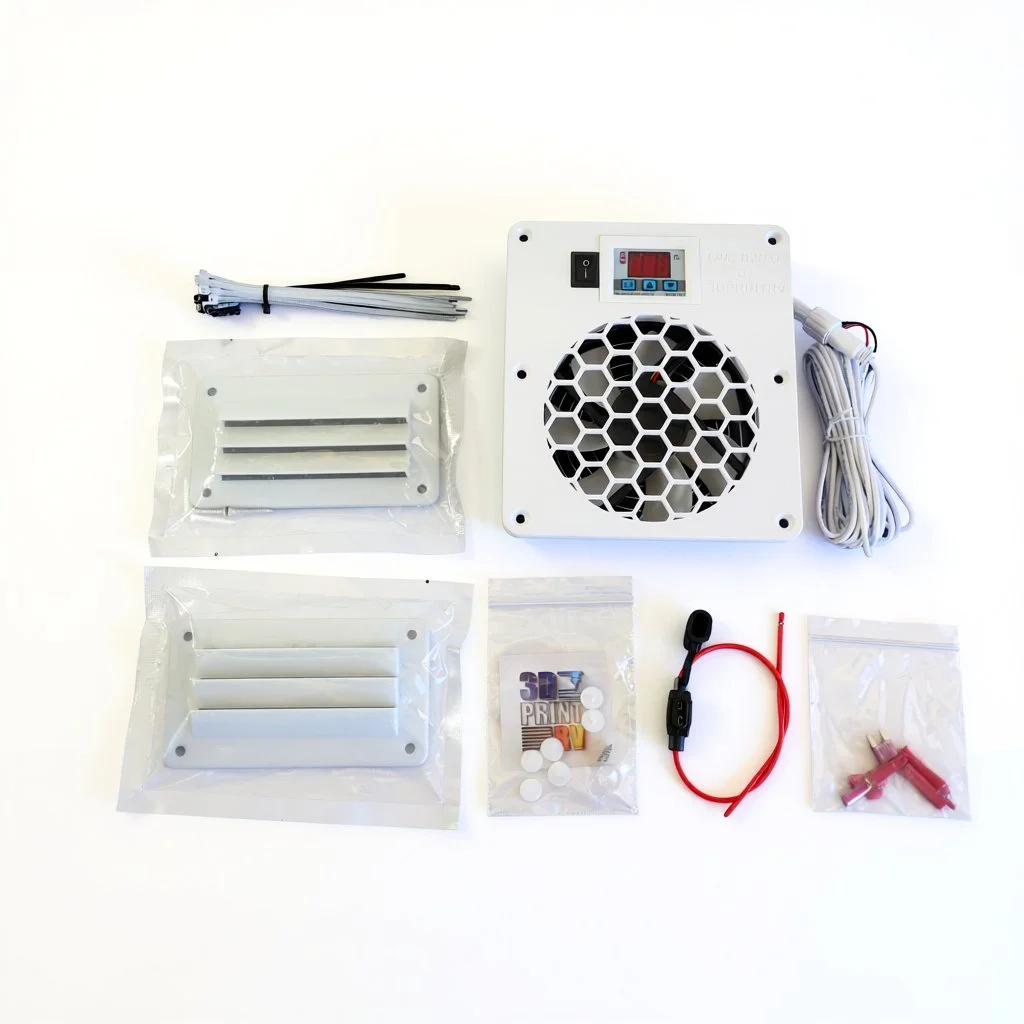

Included in the Kit:
1 x Klevacool™ KavityKoola Fan (Single 120mm).
6 x Stainless steel mounting screws.
6 x screw cover caps (keeps things looking neat).
Cutting templates for fans & vents
2 x black or white vents & stainless steel mounting screws.
1 x Fuse Holder.
2 x 3A Fuses.
4 meters of wire for battery connection.
Zip ties (black and white) to match your vent color.
Detailed Installation Instructions.
Warranty and Support:
36-month warranty for peace of mind.
Fully tested before shipping.
Ready to keep your RV electronics cool and your fridge running smoothly?
Upgrade today with Klevacool™ Cavity Cooling Fans—designed for efficiency, reliability, and long-lasting performance.
Frequently asked questions
What can I use the Klevacool KavityKoola 120mm fan to cool?

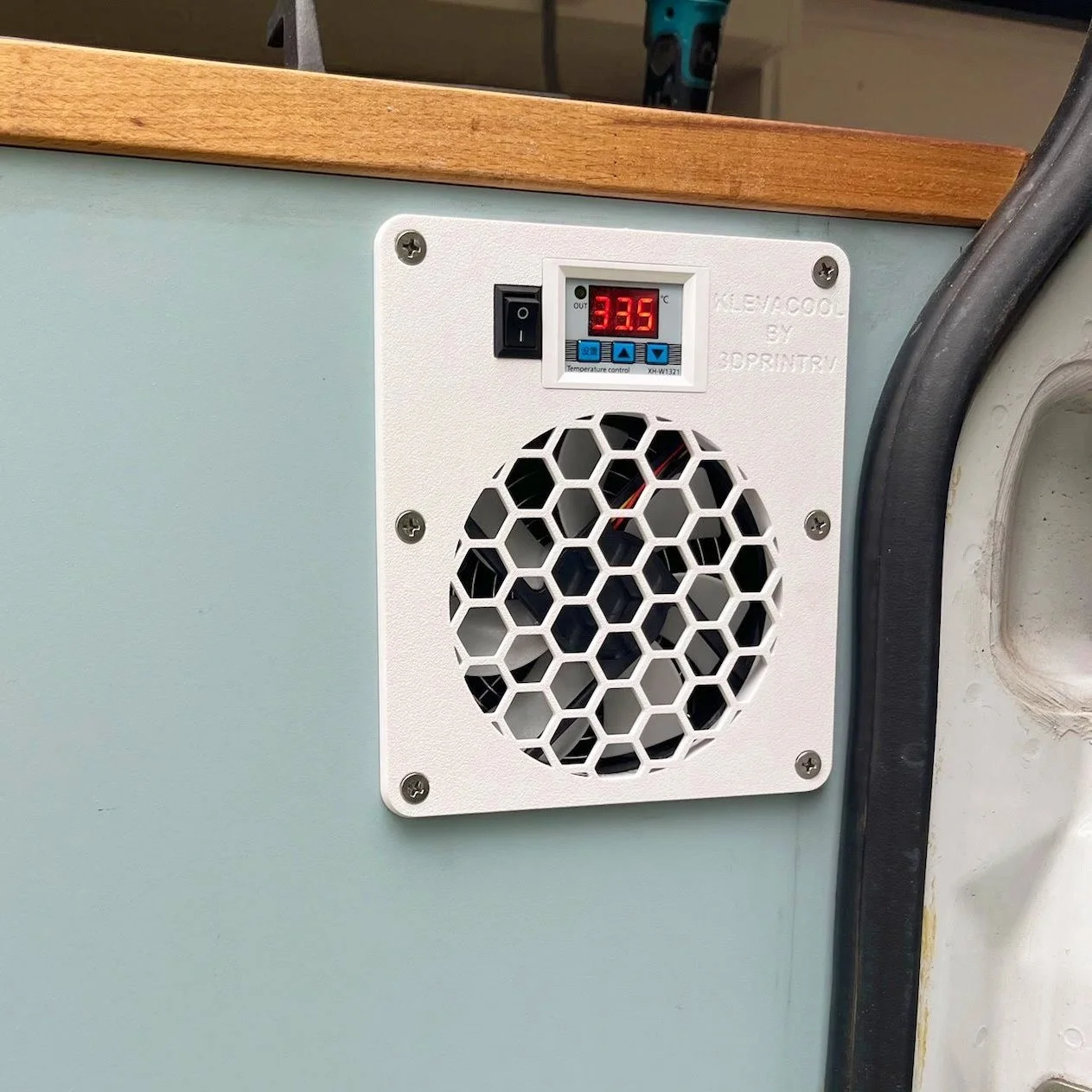

The KavityKoola 120mm is designed to remove excess heat from enclosed cavities in caravans and RVs. It can be used to ventilate areas containing equipment such as compressor fridges, inverters, battery chargers and other gear that produces heat while operating.
Will a cavity cooling fan help a drawer-style compressor fridge in hot weather?
Yes, if heat is building up in the cavity around the fridge. Compressor fridges need somewhere for the heat they remove from inside the fridge to go. The KavityKoola draws hot air out of the cavity, helping cooler replacement air move through the space around the fridge.
Does the KavityKoola fan run all the time?
No. The temperature controller monitors the cavity and operates the fan when cooling is required. This means the fan doesn't need to run continuously when the cavity temperature is already under control.
Can I use a KavityKoola fan to cool an inverter or battery charger compartment?
Yes. The KavityKoola can be used to ventilate cavities containing equipment such as inverters and battery chargers where excess heat needs to be removed.
The temperature probe can also be removed from its mounting and attached directly to the device you want to monitor.
Where should I position the temperature probe?
The probe can be left in its mounting if you want the controller to monitor the ambient air temperature inside the cavity. If you'd prefer to monitor a particular device, such as an inverter or battery charger, the probe can be removed and taped directly to that device.
This lets you choose whether the controller responds to the general cavity temperature or the temperature of the equipment you're trying to keep cool.
Should the KavityKoola fan blow air into the cavity or extract hot air out?
The KavityKoola is designed to extract hot air from the cavity. It draws air from inside the cavity and exhausts it out, which in turn allows cooler replacement air to enter through the inlet vents.
Where should the inlet vents be positioned?
Position the inlet vents so incoming air has to travel around the equipment that needs cooling before reaching the exhaust fan. This creates an airflow path through the cavity rather than cooling only one small section.
If an inlet vent is positioned too close to the fan, the fan can simply draw air from that nearby vent. The rest of the cabinet may then receive very little airflow, leaving hot spots around the equipment you're actually trying to cool.
Is the KavityKoola 120mm fan noisy?
It's designed for applications where the fan may be operating inside a caravan or RV, so excessive fan noise isn't desirable. The temperature controller also means it only needs to run when the cavity requires cooling rather than operating continuously.
