Klevaport 50 Dual Mount | Dual 50 Amp Caravan Plug Mount
Klevaport 50 Dual Mount | Dual 50 Amp Caravan Plug Mount
Two 50A connectors can get awkward to reach once cables and T-handles are fitted.

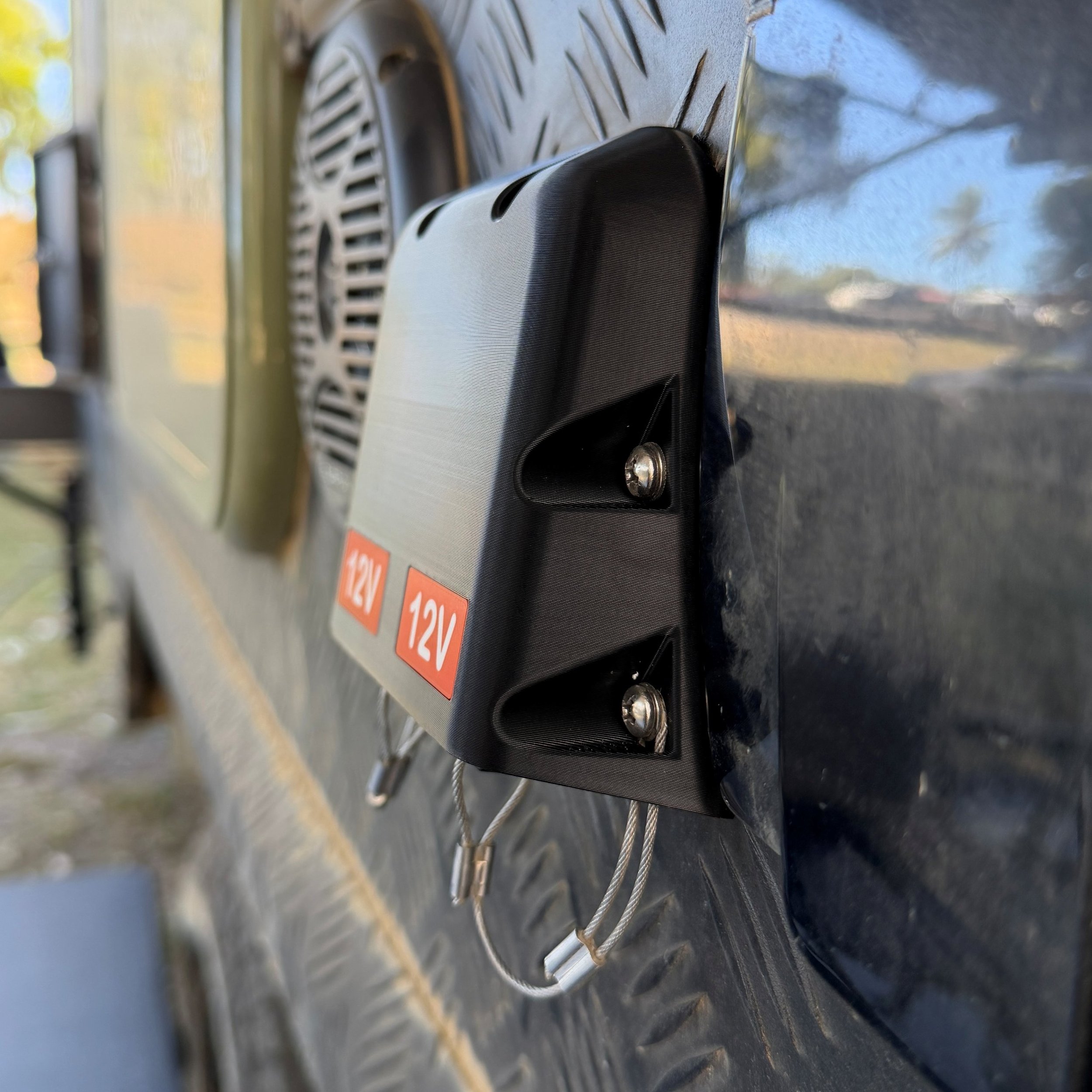

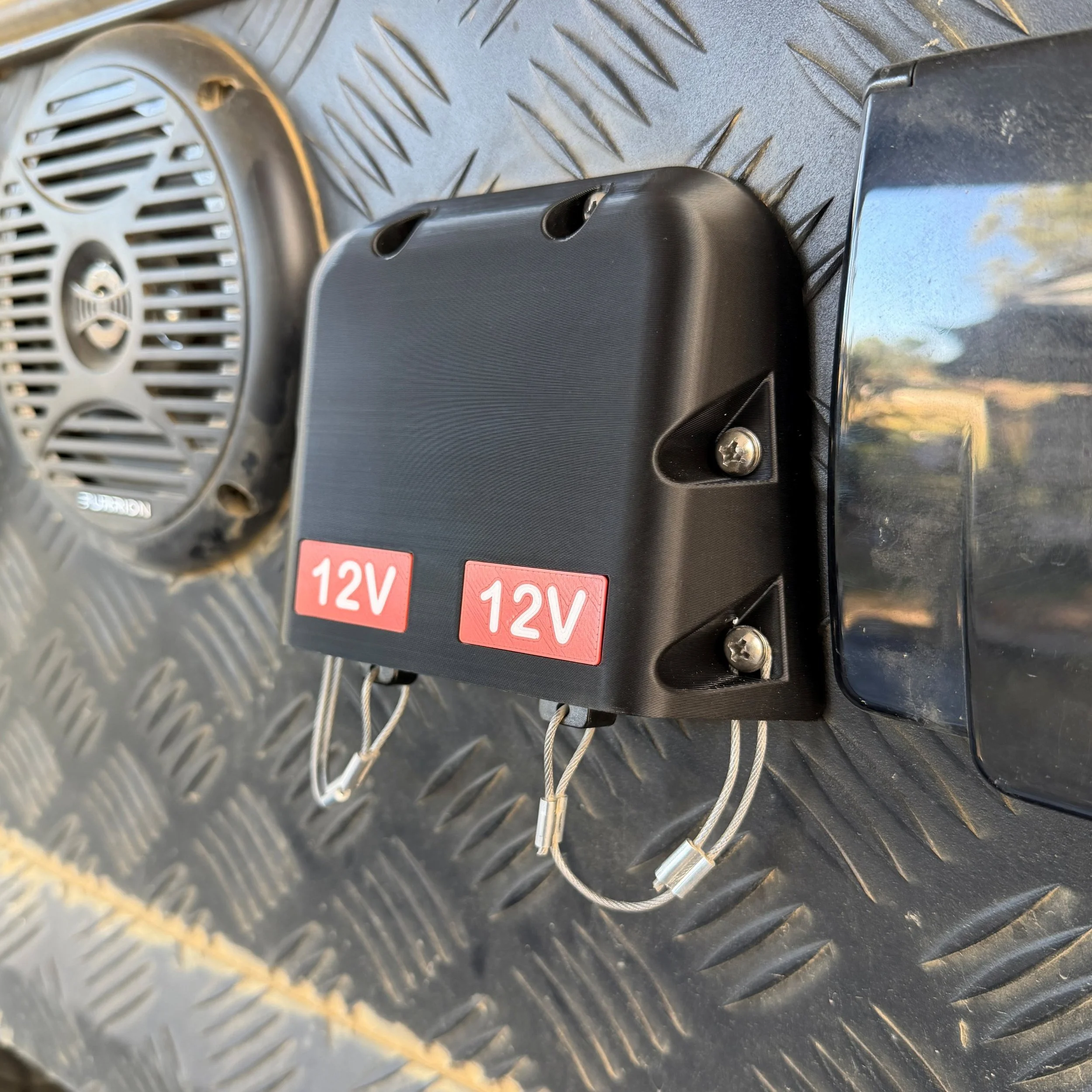

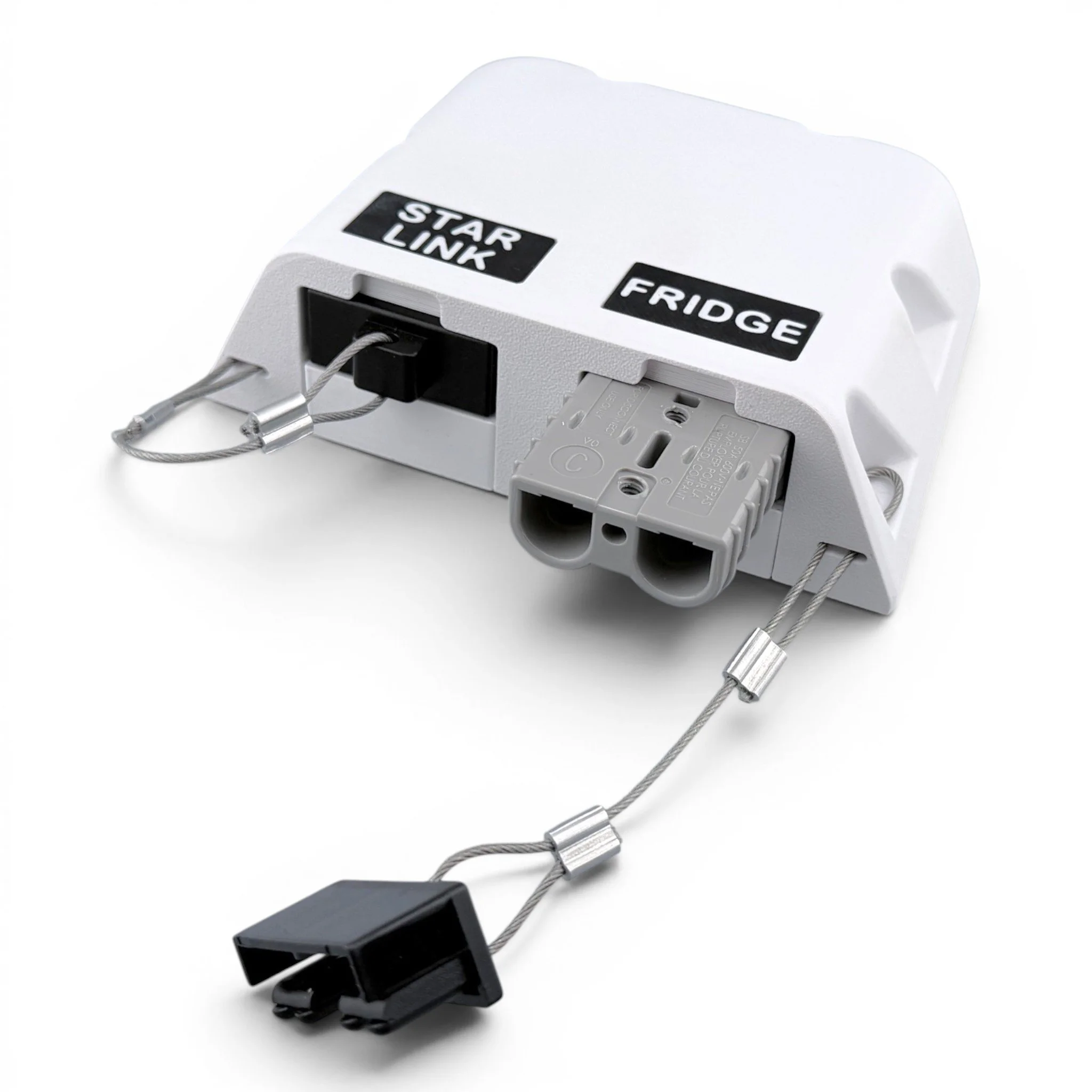

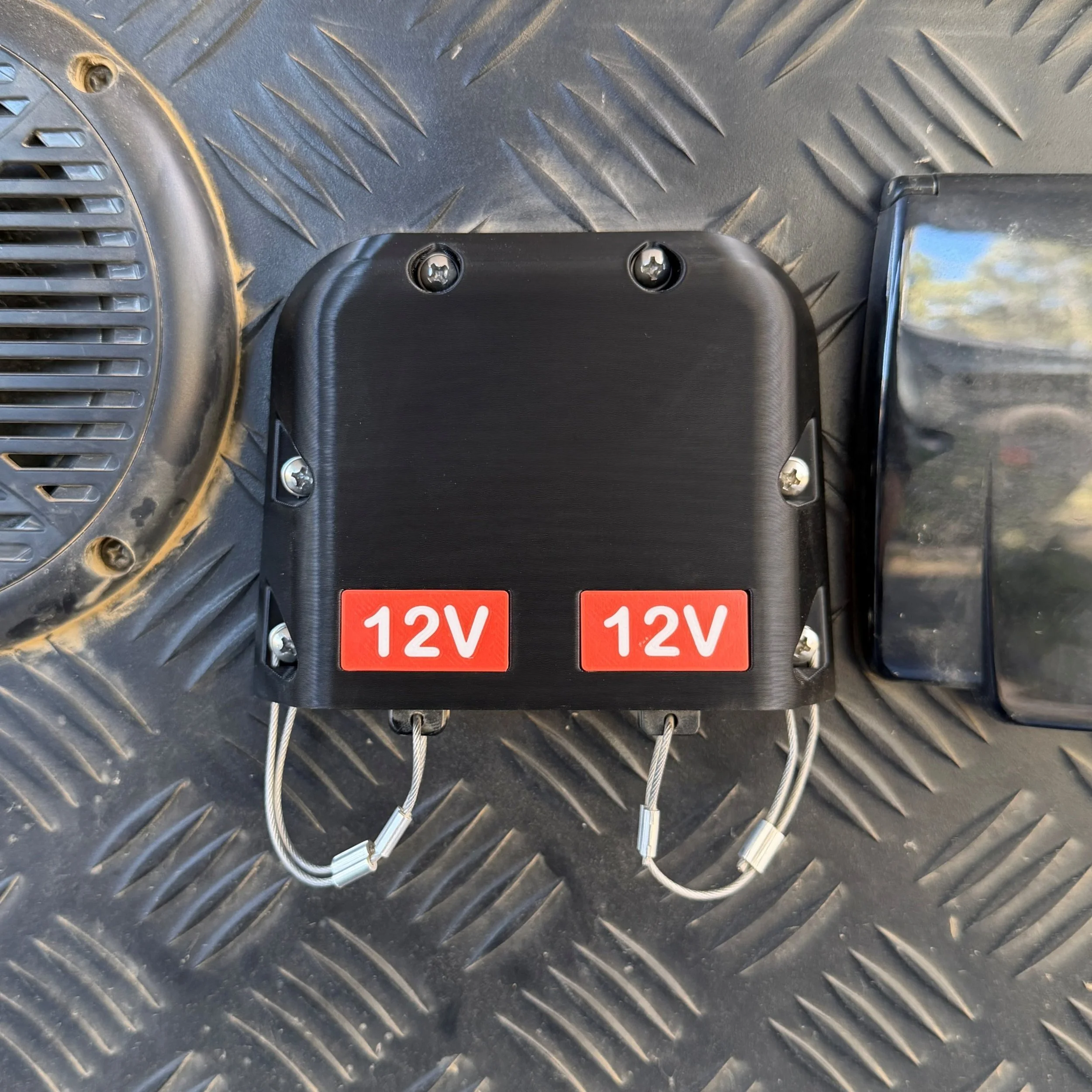

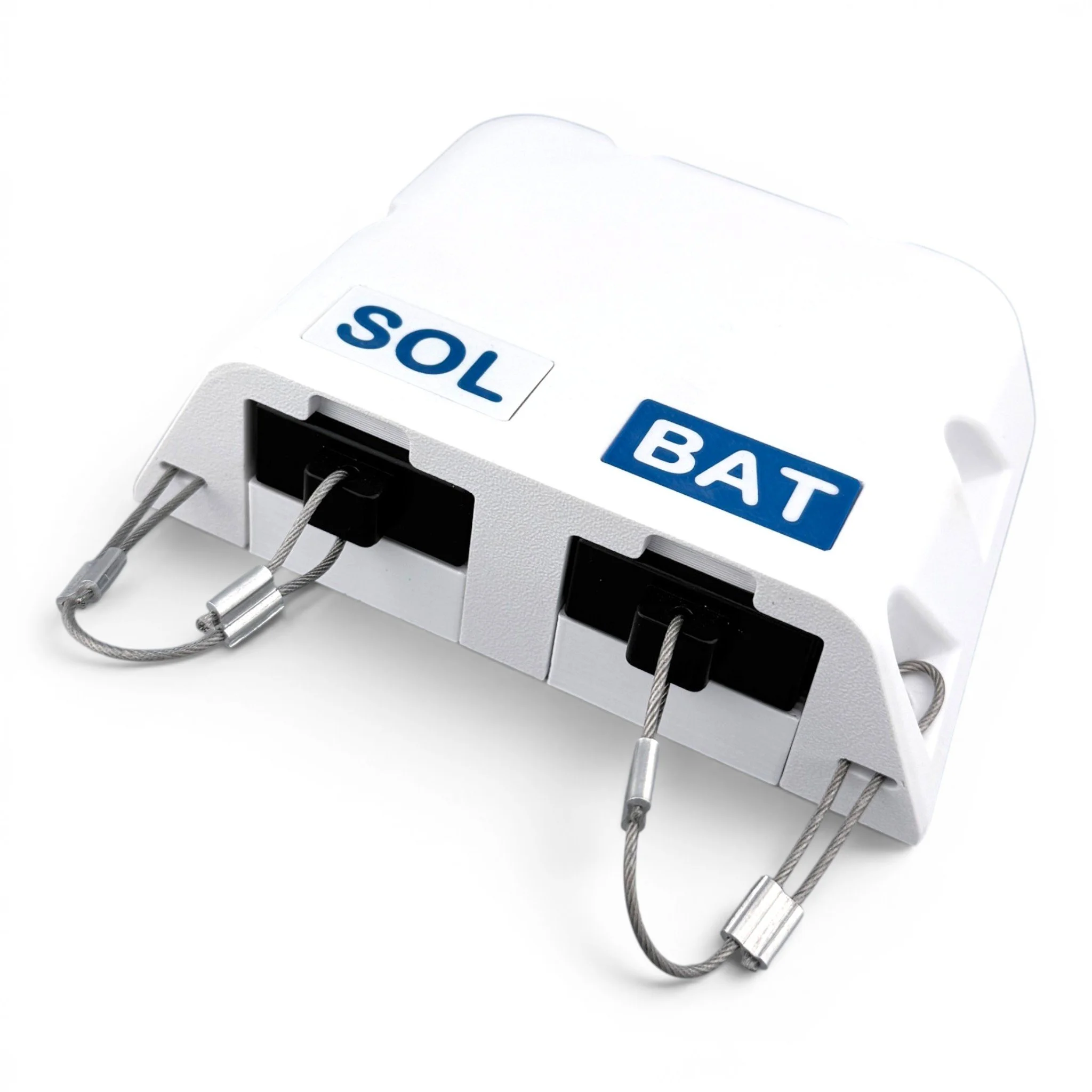

The Klevaport 50 Dual Mount is a dual 50 amp caravan plug mount that brings both connection points away from the wall. The cable exits stay hidden behind the housing. It's compatible with Anderson® SB50 connectors and other brands using the same 50A format.
What makes it different
Angled mounting brings both connectors clear of the wall and gives your hand more room.
Hidden cable exits keep the wiring entry behind the housing instead of beside the connectors.
Recessed dust covers sit into the housing and stay attached with stainless retaining wire.
Built-in clearance leaves room to use T-handles without them fouling the van wall.
The silicone sealing groove gives sealant a defined path around the mounting surface.

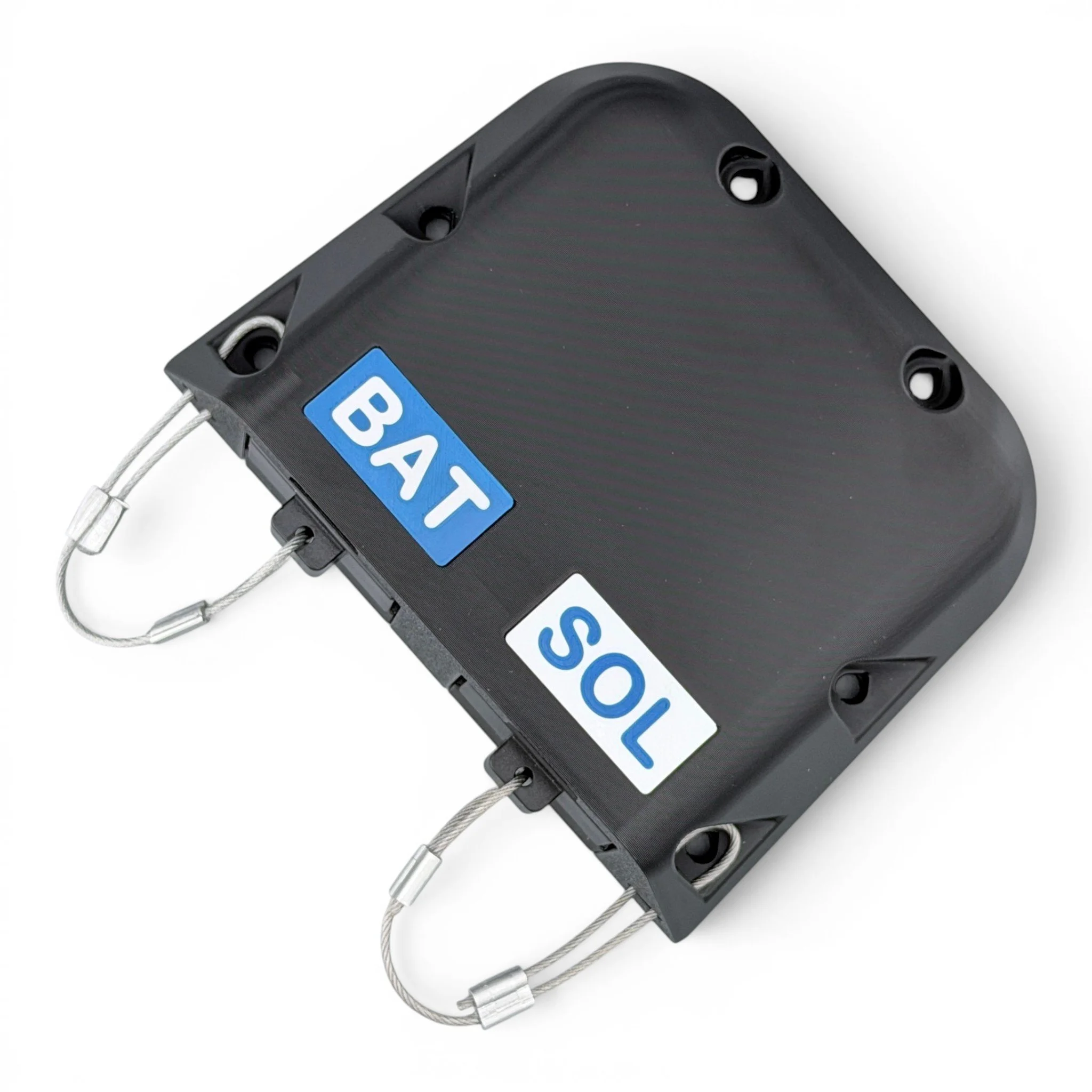

Labels are supplied loose so you choose which one goes in each position before gluing them in.
It mounts to a flat surface. Connectors and T-handles are sold separately.
Designed and manufactured in Australia by 3DPrintRV, where Quality & Innovation Matter.
Aust design registration 202614285.
Specifications
Suits: Two 50A connectors compatible with Anderson® SB50 connectors and other brands using the same 50A format
Before ordering: Flat mounting surface required
Options: Choose the required labels; supplied loose for customer positioning

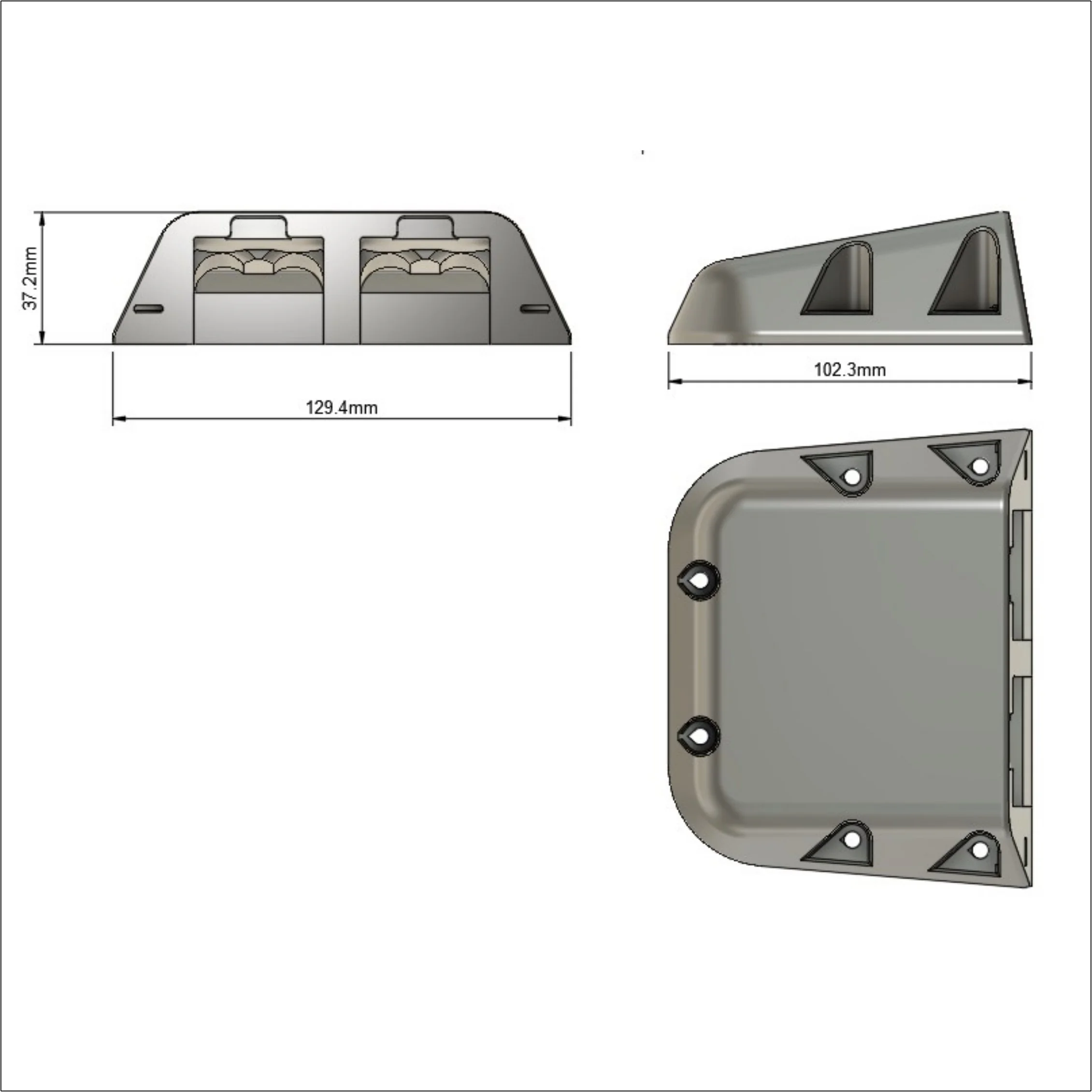

Dimensions: 129.4mm W x 102.3mm D x 37.2mm H
Included: Dual mount housing, recessed dust covers, stainless mounting hardware and retainers, selected labels, fitting instructions
Not included: 50A connectors and T-handles
Optional extras: 50A plug connectors and T-handles
Warranty: 12 months
Origin: Designed and manufactured in Australia
Related mounts: Klevaport 50 Single Mount; Klevaport 50 Triple Mount
Frequently asked questions
Will it fit genuine and aftermarket 50A connectors?
It'll fit genuine Anderson® SB50 connectors and other brands that use the same 50A format. The retaining screw allows for small dimensional differences between connector housings.
Can I use the two sockets for different circuits?
Yes you can. Each position holds its own connector, so the two can be assigned to different circuits in your setup.
How do I know which socket is which?
Use the recessed labels to identify each position. Choose which label goes on each side before you glue them in.
Are the labels already fitted?
No. The labels are supplied loose because we don't know which one you want on each side. Once you're happy with the layout, secure them with silicone or another suitable adhesive.
Can it be mounted outside the caravan?
It can. It's designed for external mounting on a flat surface. It isn't waterproof, so the plug orientation still matters.
Does it need silicone when fitting?
Silicone sealant is required. Apply it in the built-in sealing groove when fitting the housing.
Can I fit a T-handle to the connectors?
Yes. The housing has built-in clearance for a T-handle. T-handles are sold separately.
Which way should the connectors face?
Face the plug inlets downward. That's the orientation required for the mount to be weatherproof.
Trademark Notice: Anderson® and SB® are registered trade marks of Anderson Power Products, Inc. References to Anderson® SB50 products are used solely to indicate compatibility. 3DPrintRV products are not affiliated with or endorsed by Anderson Power Products, Inc.
