Flat-mounted 50 amp plugs can be awkward to grab, and messy cable exits don't help the finished job.

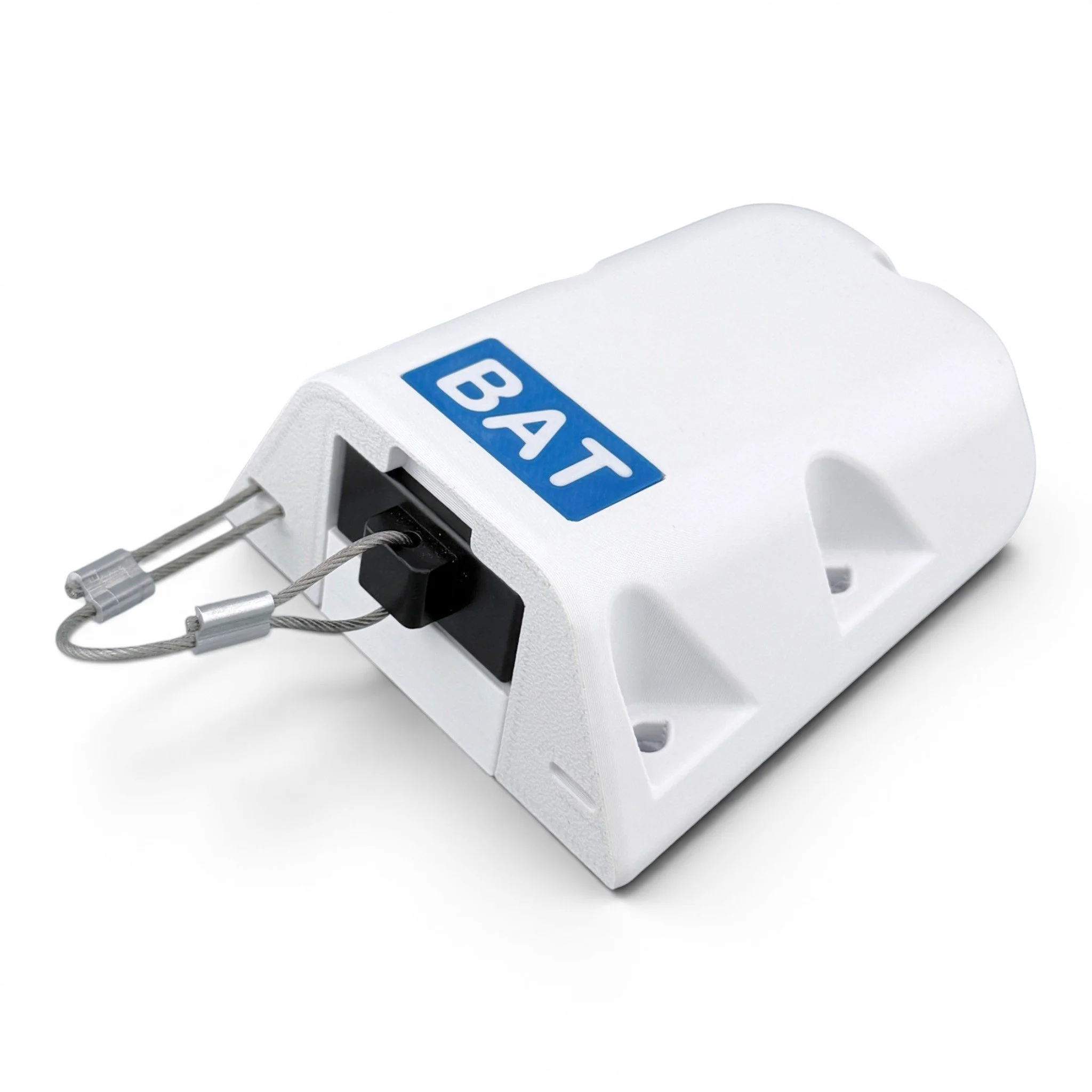

The Klevaport 50 Single Mount is an angled 50 amp caravan plug mount that gives the connector a neater home outside the van. The cable exit sits behind the housing instead of being left exposed.
What makes it different

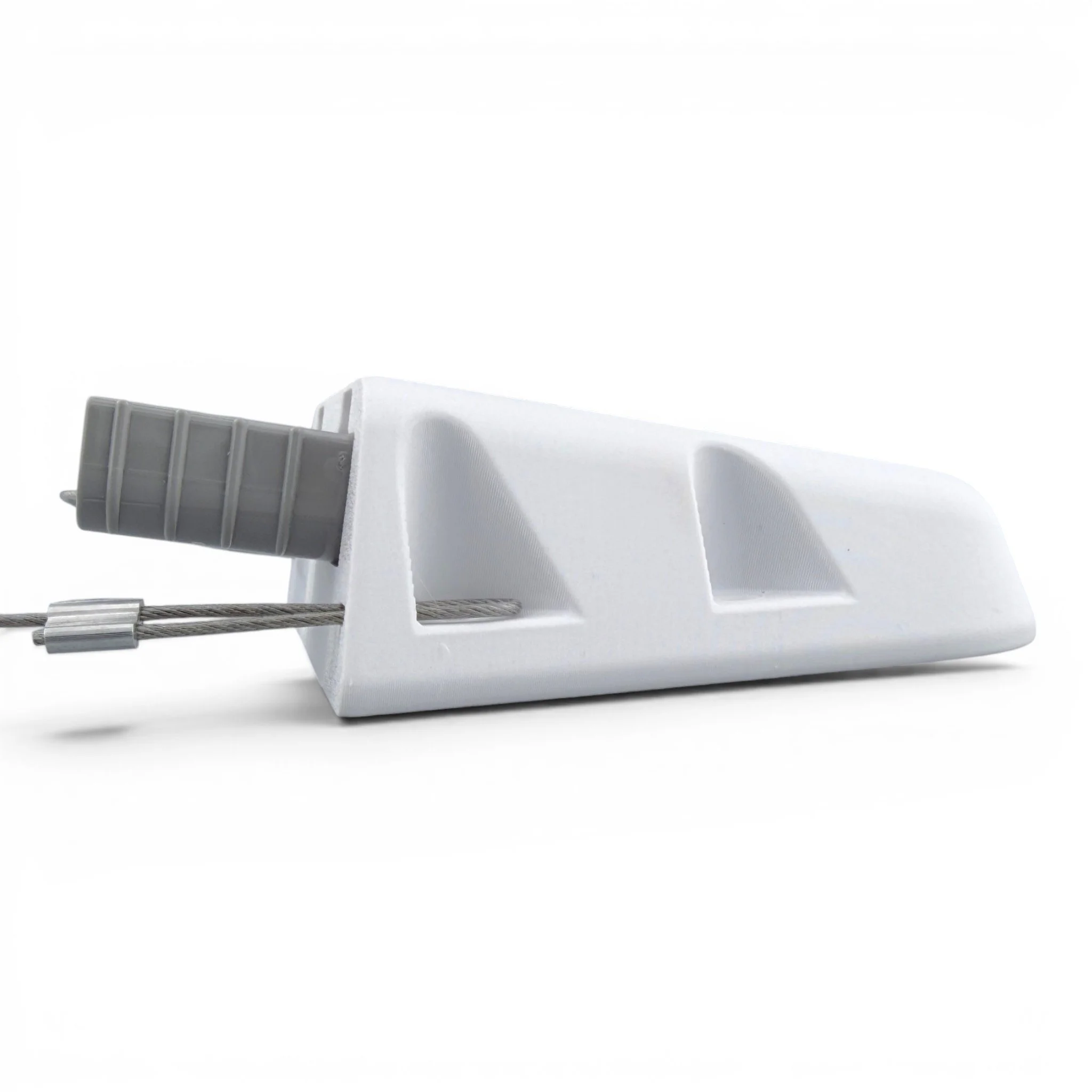

The angled connector position gives you more room to grip the plug and keeps it clear of the van wall.
A recessed dust cover and hidden cable exit leave a cleaner finished installation.
Rounded, sloping sides give branches and scrub less to catch on as they pass the mount.
Built-in T-handle clearance lets you use a T-handle without it fouling the housing.

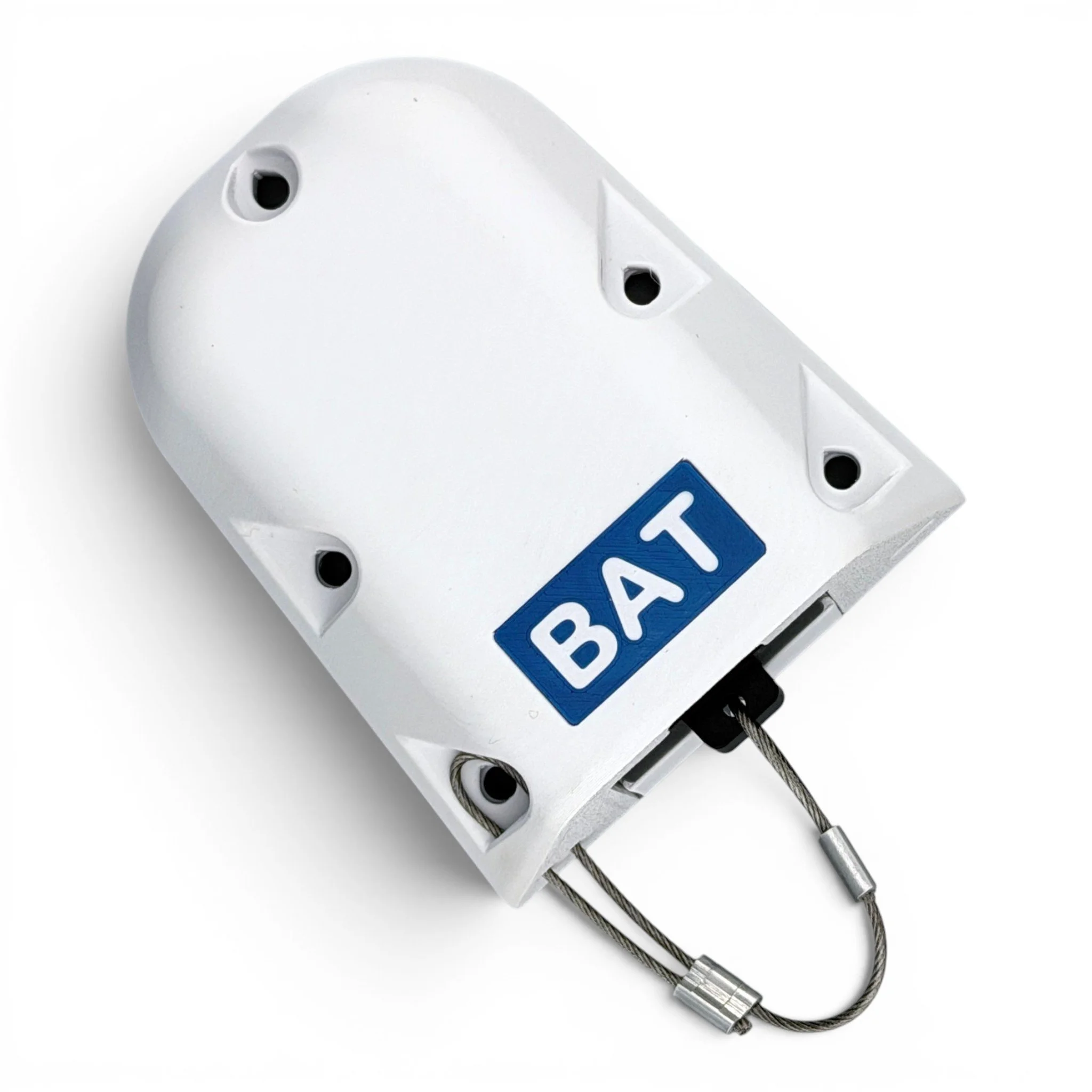

Your selected 3D printed label sits in a recess, so it doesn't stand proud where it can easily snag.
An integrated sealing groove helps guide the silicone gun nozzle during fitting.
It suits genuine Anderson® SB50 connectors and other brands using the same 50 amp format; the connector and T-handle aren't included.
Designed and manufactured in Australia by 3DPrintRV, where Quality & Innovation Matter.
Aust design registration 202614284.
Specifications
Before ordering: Flat mounting surface required
Options: Black or white mount; selected recessed label or no label

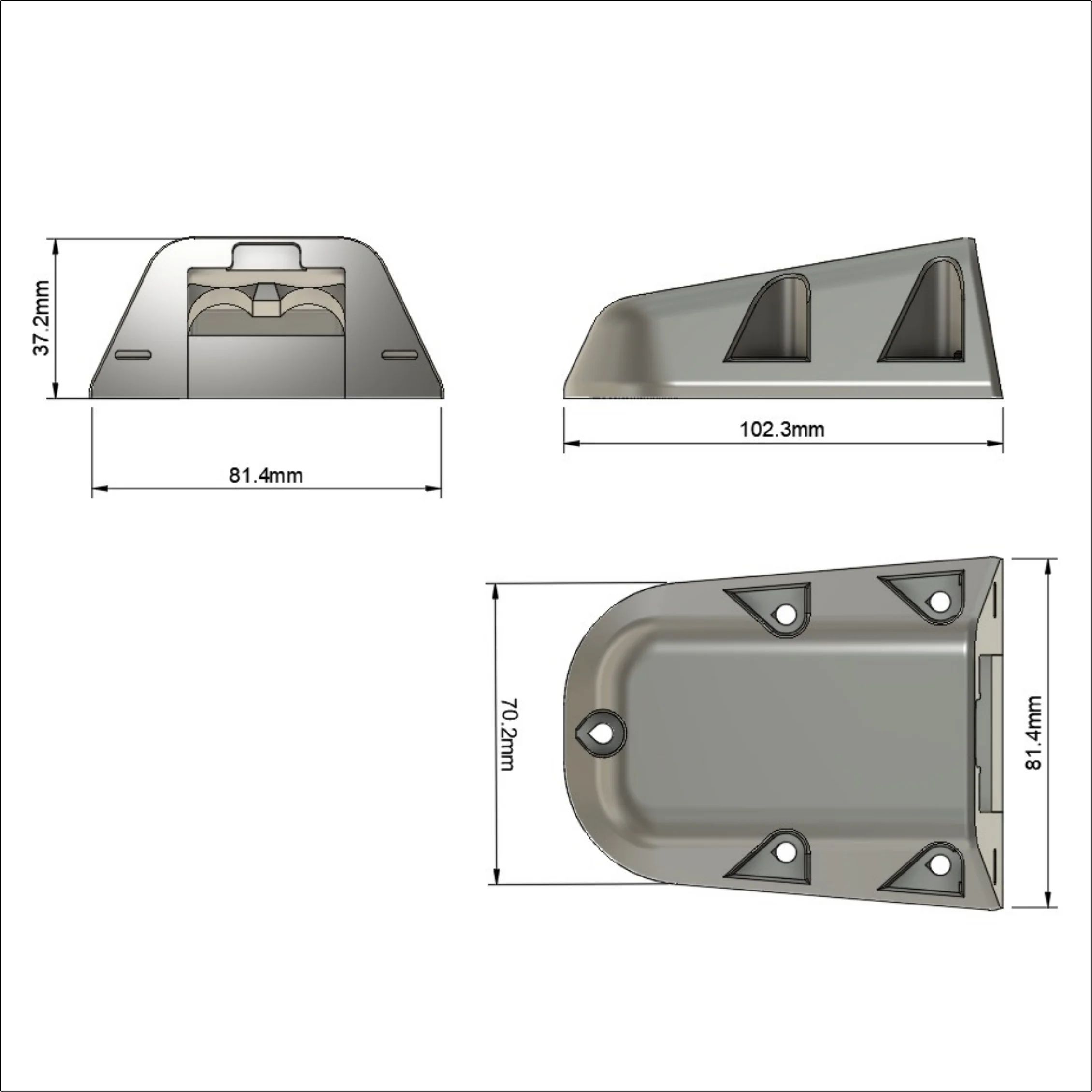

Dimensions: 102.3mm long x 81.4mm wide x 37.2mm high
Included: Mount, recessed dust cover and stainless mounting hardware
Not included: 50 amp connector and T-handle
Warranty: 12 months
Origin: Designed and manufactured in Australia
Frequently asked questions
Is it weatherproof?
It's weatherproof when it's mounted on a flat surface with the plug inlet facing downward. That orientation is part of the installation requirement.
Can I install it myself?
It's designed for straightforward DIY fitting. Installation instructions are included.
Will it fit genuine Anderson® SB50 and other 50 amp connectors?
It fits genuine Anderson® SB50 connectors and all brands using the same 50 amp connector format. If you need one as well, our compatible 50 amp connectors are available separately.
Can I use a T-handle with it?
Yes. The housing has clearance for a T-handle, and our T-handles are available separately.
Can I order it without a label?
A no-label option is available. If you want a label, choose the designation you need before adding the mount to checkout.
Do you make dual and triple versions?
The Klevaport 50 family also covers multi-connector installs. The Klevaport 50 Dual Mount is the two-connector version, and the Klevaport 50 Triple Mount will cover three-connector installs as a separate product.
How is the connector protected when it isn't being used?
The recessed dust cover helps keep dirt, insects and road grime out of the connector. A stainless retaining wire keeps the cover attached to the mount.
