LED Caravan Awning Light with Motion Sensor
LED Caravan Awning Light with Motion Sensor
Want motion-sensing awning light without changing the original mounting footprint?
This LED caravan awning light pairs our triple-colour motion-sensing lamp with the compact 150mm x 90mm adaptor plate. It replaces many smaller awning lights without drilling fresh mounting holes.
What makes it different
Motion sensing switches the light on automatically at night when movement is detected.
The 150mm x 90mm adaptor plate lets many existing installations be upgraded without drilling new mounting holes.
Three colour modes give you a choice of white, warm white and amber, or red, white and amber.
Three brightness levels make it easy to back the light off around camp or use full output when needed.
Check the 150mm x 90mm base against your existing light before ordering. Need the larger oval footprint? See our oval LED awning light version.
Made in Australia by 3DPrintRV, where Quality & Innovation Matter.
Aust design registration 202314584 / 202314585.
Specifications
Suits: Many caravan and camper awning light positions
Before ordering: Check the 150mm x 90mm base dimensions for suitability

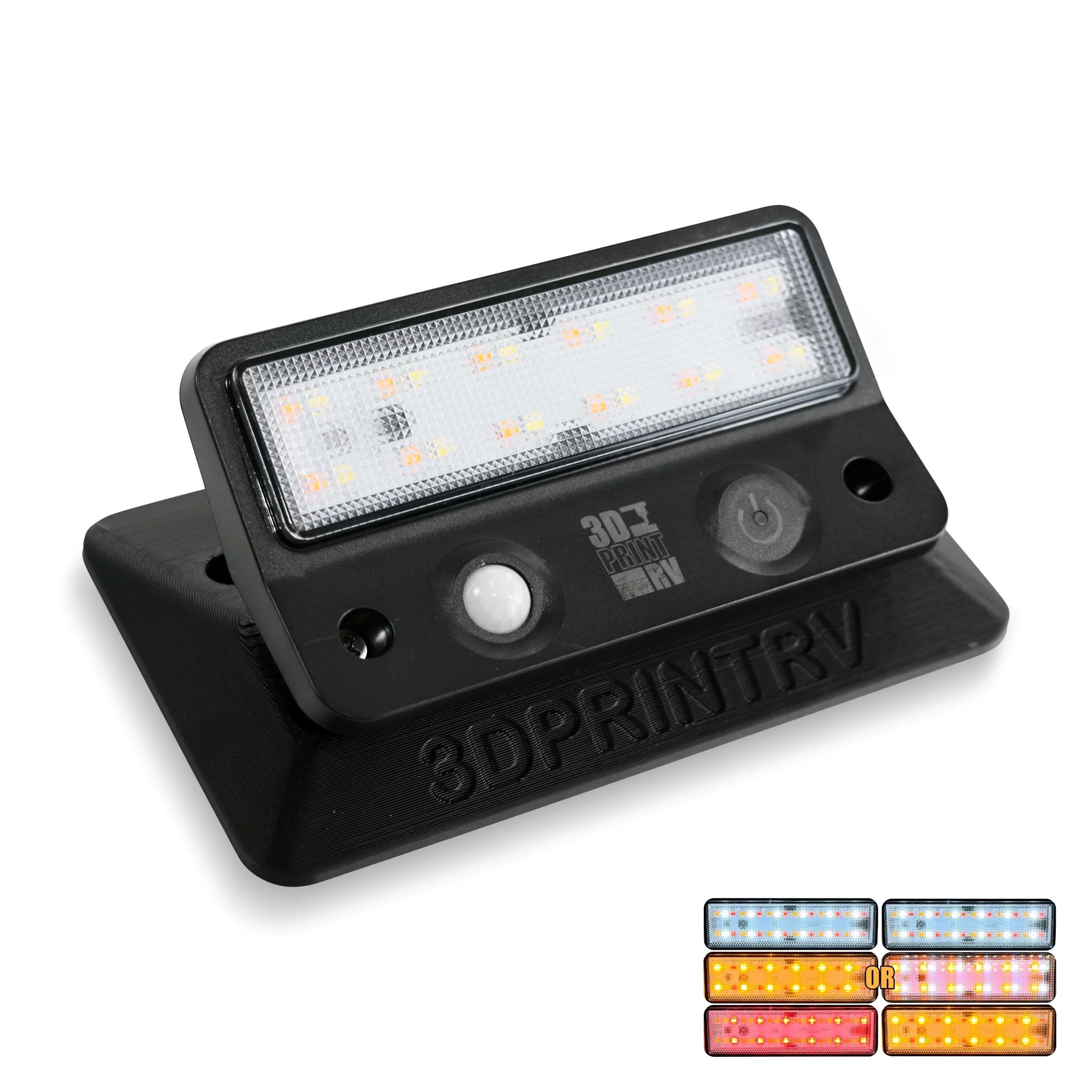

Options: White or black body; White/Warm white/Amber or Red/White/Amber LED colour set

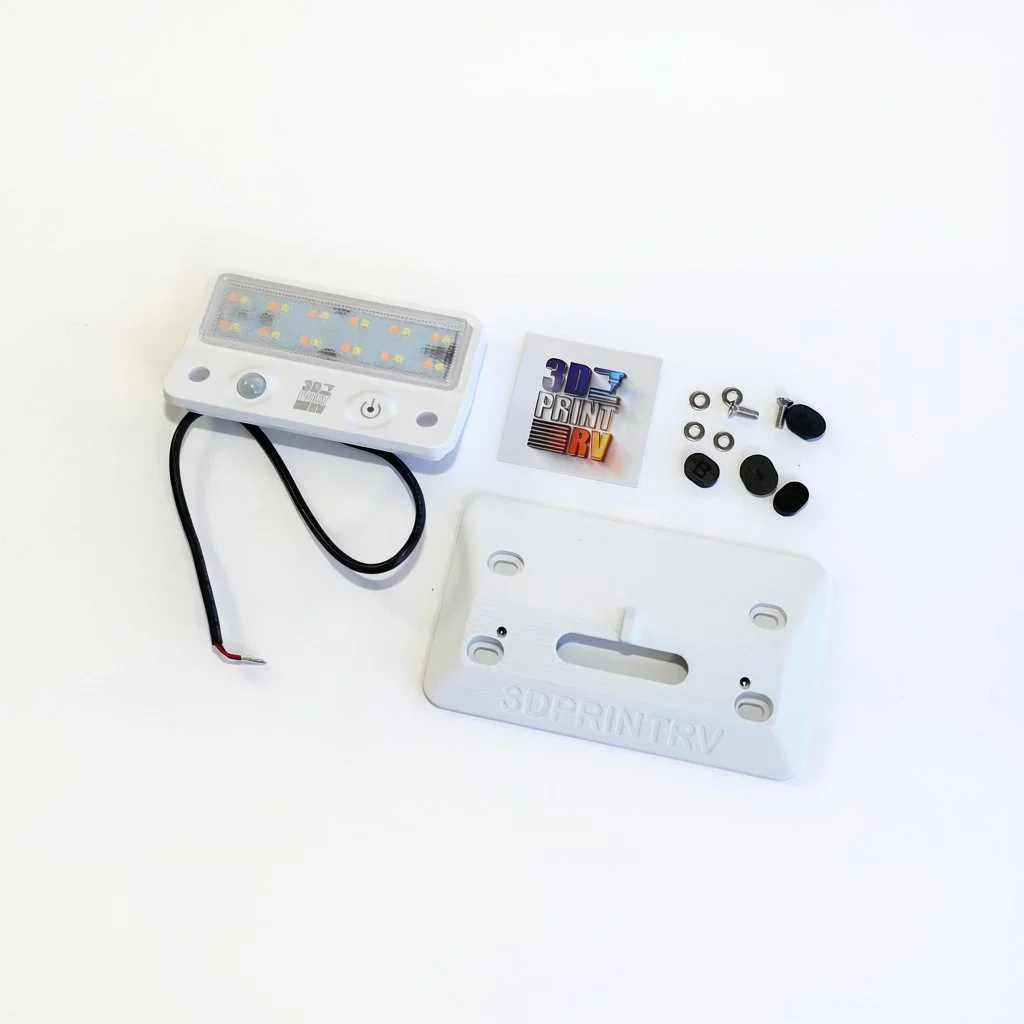

Included: LED awning light; 150mm x 90mm adaptor plate; stainless screws and Nyloc nuts; blanking plugs; instructions
Dimensions: Base 150mm x 90mm; height 55mm
Electrical: 12V to 24V DC; 140mA at minimum to 370mA at maximum brightness (at 12.9V)
Ratings: IP67 rating applies to the light itself
Light output: Up to 800 lumens
Controls: Touch switch; three brightness settings; colour and motion modes; setting memory
Motion sensing: PIR motion sensing is disabled during daylight; off after 30 seconds with no movement
Fitting: Positive and negative wiring only; detailed fitting and operating instructions supplied
Warranty: 12 months
Frequently asked questions
Will the 150mm x 90mm base suit my existing light?
It is designed to use the existing mounting holes and cable position of many common awning lights. Measure your existing fitting and check the 150mm x 90mm base before ordering.
How bright is it at full output?
At full brightness it produces up to 800 lumens, with three brightness levels available. That lets you choose less light around camp or full output when you want it.
Does the PIR sensor stay active during daylight?
No. Motion sensing is automatically deactivated during daylight, so the lamp does not keep switching on when it is not needed.
How long before it switches off?
It switches off 30 seconds after no movement is detected.
What can trigger the motion sensor?
Passing people or animals can trigger it because the PIR sensor responds to movement.
Can I disable motion sensing without cutting power?
Yes. The motion-sensing function can be turned off using the touch switch on the lamp. The same switch can also turn the light off completely.
Does the replacement need extra control wiring?
No extra control wiring is required. It only needs positive and negative, the same as the original lamp. Colour, brightness and mode settings are all controlled at the lamp.
Which colour attracts fewer insects?
In our own test, white attracted the most insects, amber attracted fewer and red attracted hardly any. Results will vary because different insect species respond differently to different colours.
Can it run on 24V as well as 12V?
Yes. The light operates on both 12V and 24V systems.
Does it keep its settings after power is removed?
Yes. It saves the last setting when power is removed and returns to that setting when power is restored.
Our LED Caravan Awning Lamps Now Have A Red/White/Amber Option!

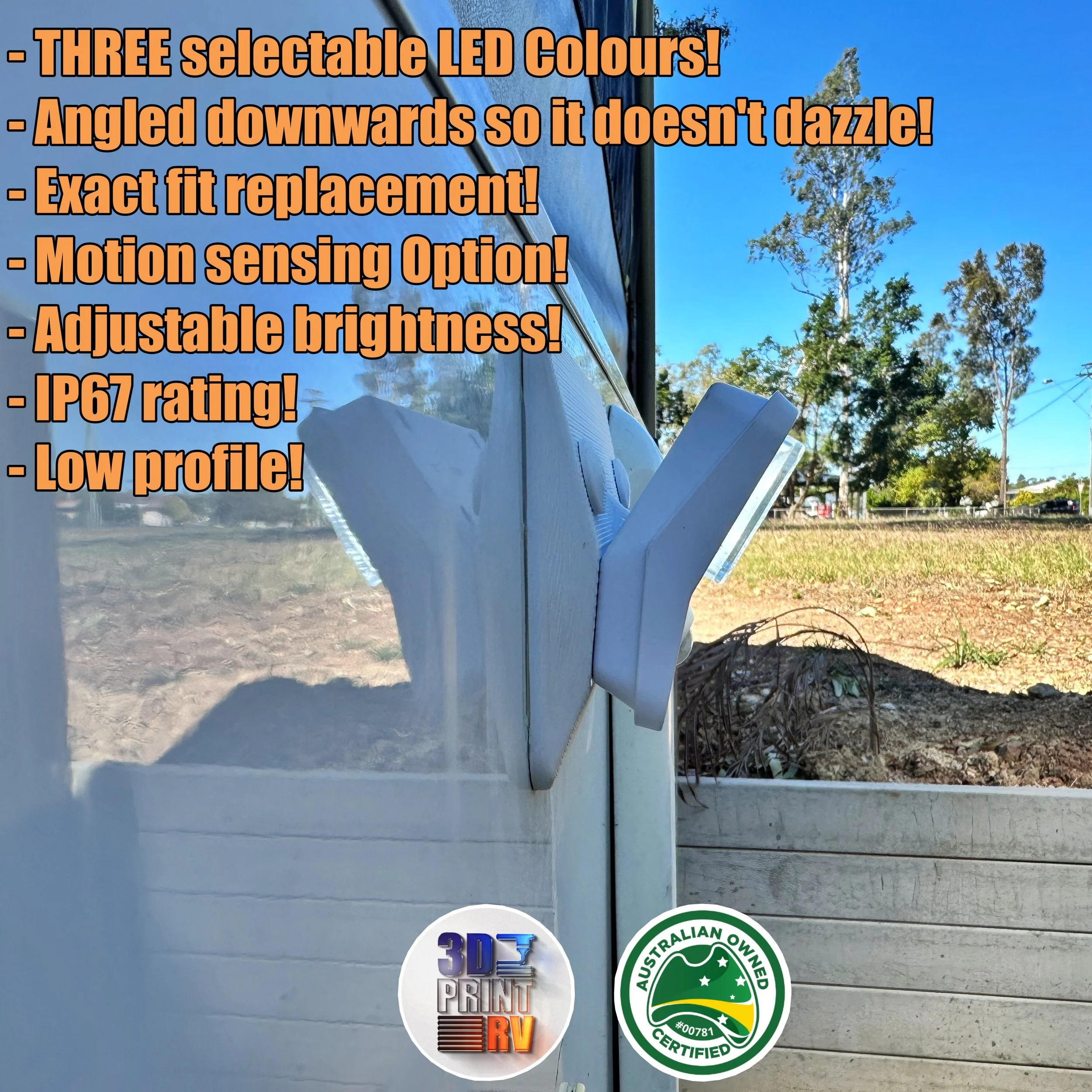

Our Motion Sensing Awning Lamps In Action On Our Van!
We’ve made a short video to provide more information on our lamp!
