Clearance & Compatibility:

📏 VENT CLEARANCE MEASUREMENT:
To ensure proper fitment, the required mimimum of 70mm clearance must be measured from the outside wall of the van to the closest object inside the vent cavity.

Check out our video on how to measure your vent. It’s dead easy!

This includes any obstacles such as fins, pipes, hoses, cables, or even wood framing that may be inside the vent's plastic frame.

If you don’t have enough space, check out our Spacer Kits here .

• Requires clearancefrom the outside wall. If unavailable, order the Spacer Option. or check out our Unifit Fans.

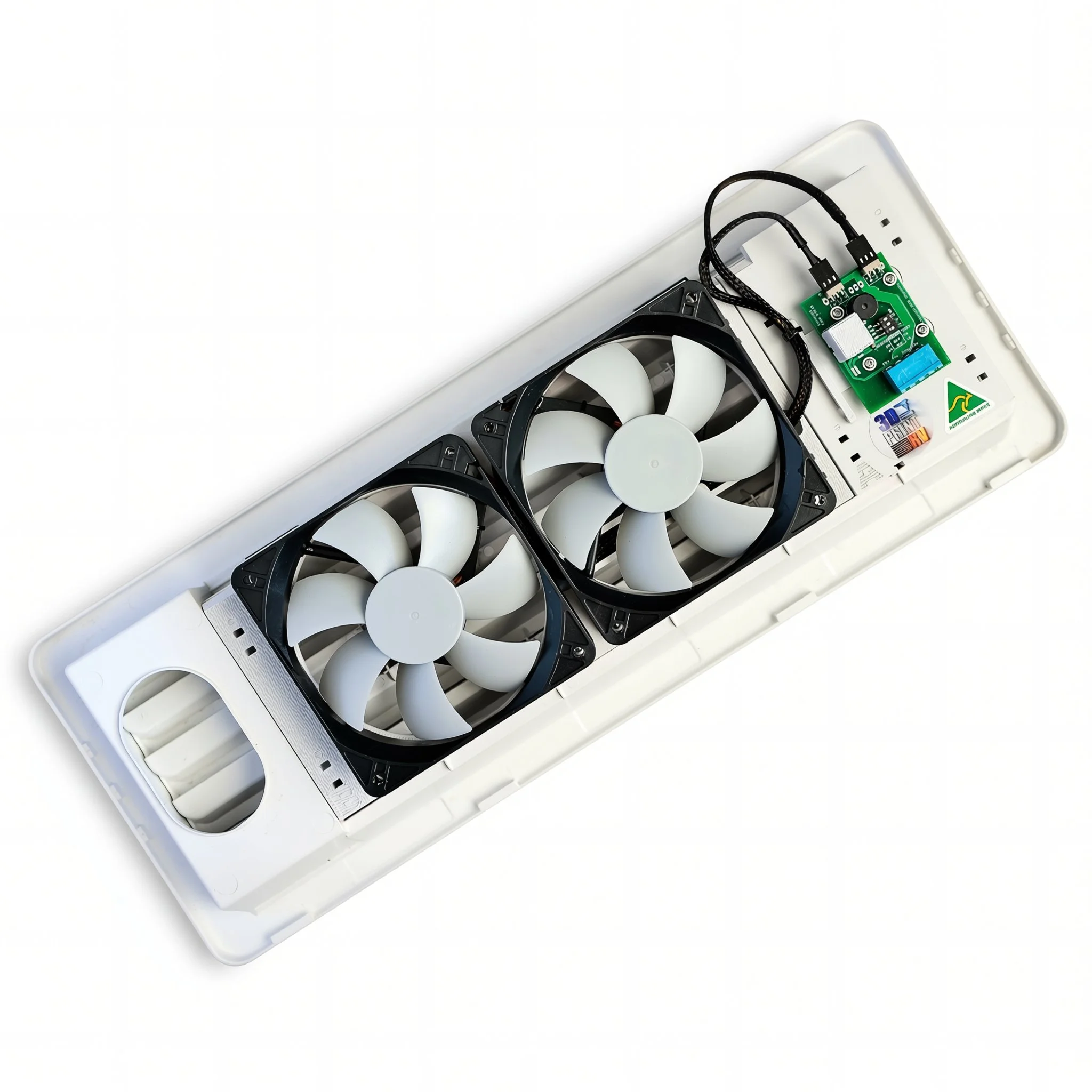

• Fits Dometic & Thetford vents (~480mm x 185mm).

• Choose the correct vent & fridge type from the dropdown menu.

• Must be installed in the upper vent, not the lower.

• Works with both screw-style & older twist-clip vents (order “Rounded” for twist-clip).

• The video below shows how to measure your vent.

How do I know if these fans will fit my vent?

• Measure from edge to edge both horizontally & vertically.

• If your measurements are close to those shown in the pic below (+/- 5mm), we’ll have a kit to suit.

What kit do I order?:

Using the picture below, identify your UPPER vent & then select it from the drop down box.

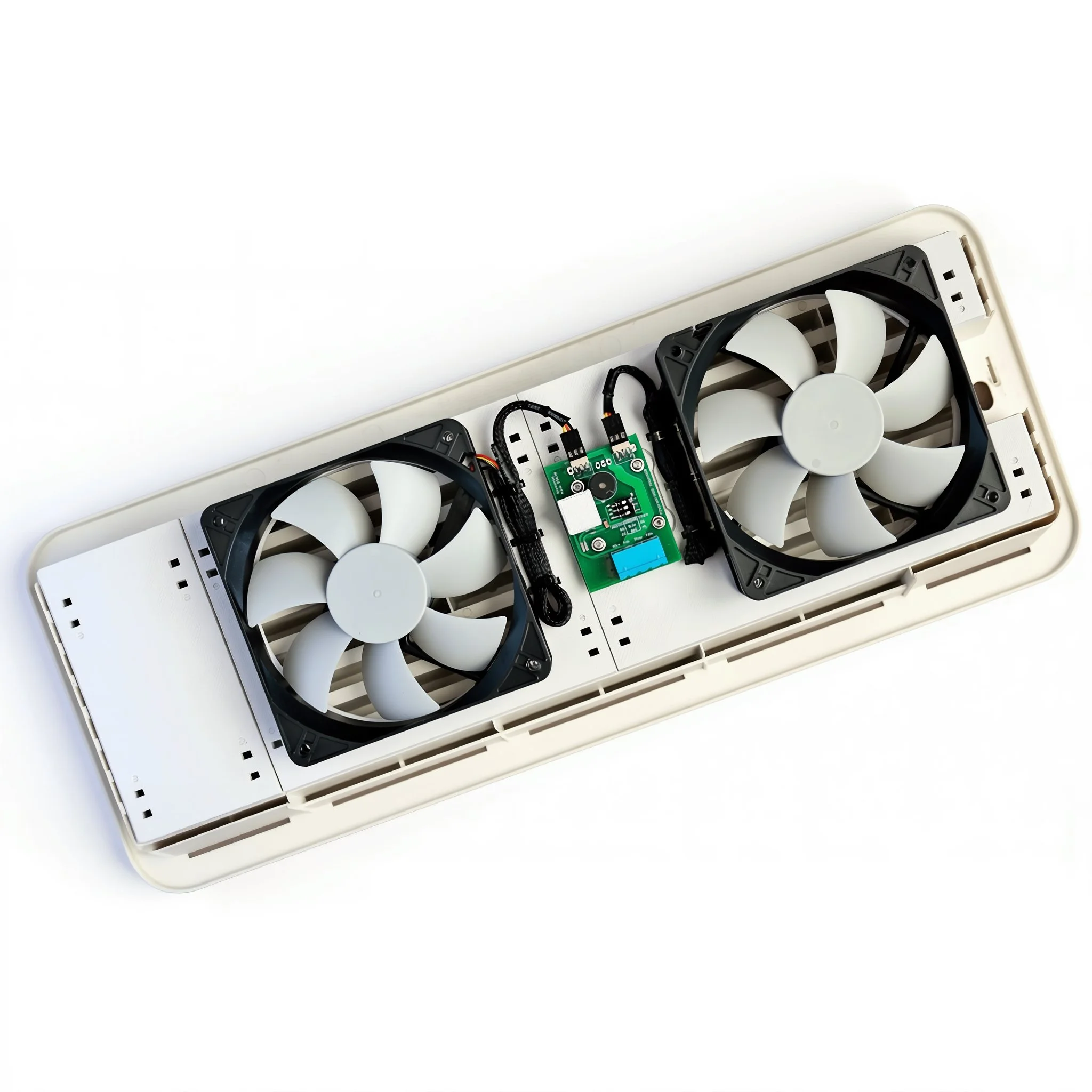

• Take note if you have an exhaust outlet built into the vent or not.

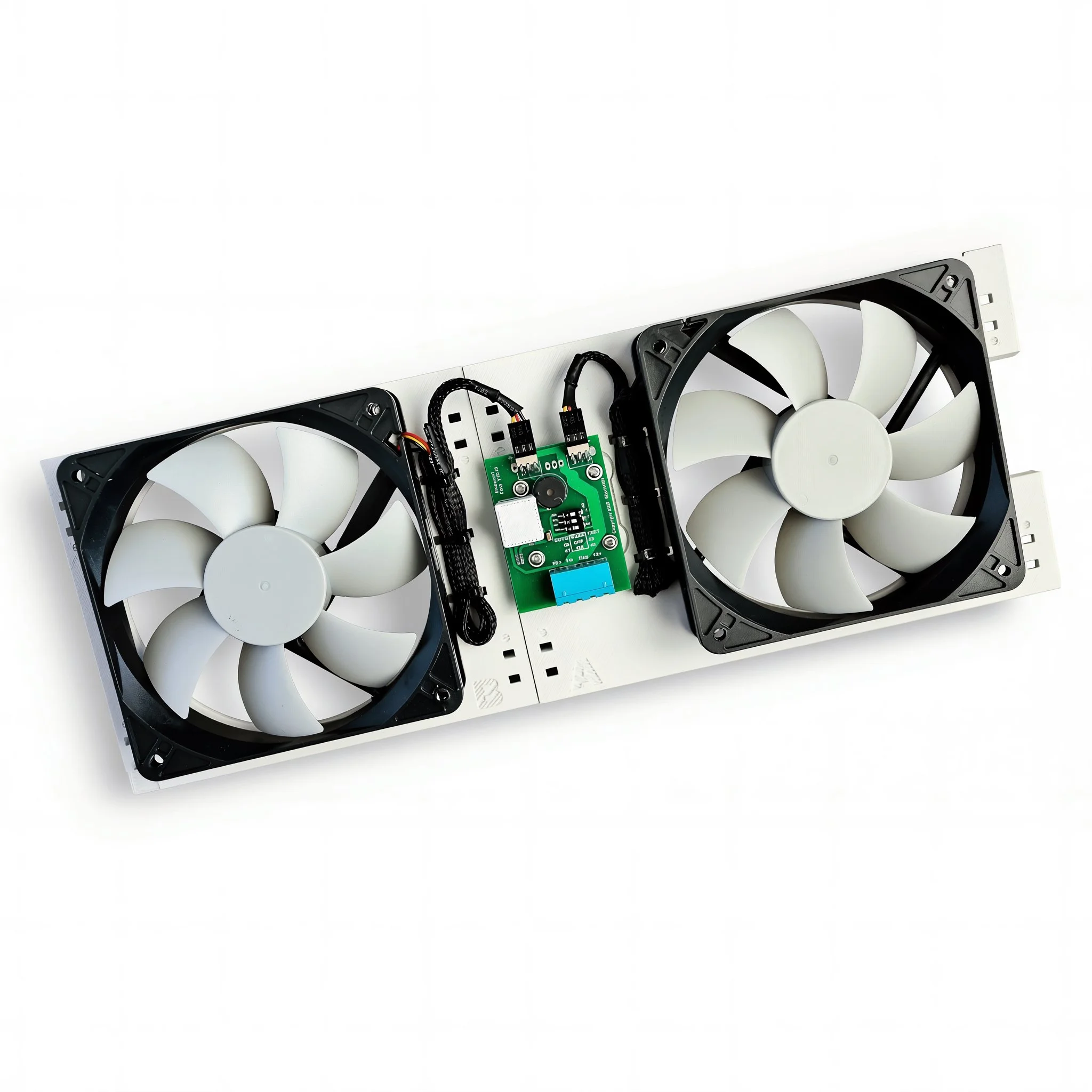

• Older “twist” type clip vents should order a kit to suit an early Dometic vent.

• The fans must be installed in the upper vent

Our Klevacool™ Thetford Kit was reviewed by Vaughn Lynch from “Work, Live, Play” on Youtube!

How do the 3D printed plates the Klevacool system so easy to fit?

Our Klevacool controller is designed & manufactured in Australia. They’re designed for our Australian conditions & they’re TOUGH.

Confirm which type of fan you need here using our vent identification form!

Why is Klevacool™ different?

Unlike basic fridge fans, our RPEQ-certified system exceeds Australian Standards and provides:
✔ No drilling required – Fans mount neatly to the vent with zip ties.
✔ Low power draw – Only 0.25A total (6Ah/day max).
✔ Smart safety features – Fans stop if blocked & auto-restart when clear (no burnouts).
✔ Fully sealed controller – Coated for durability in harsh conditions.
✔ Quick-disconnect connector – Allows easy vent removal for maintenance.
✔ Over-temperature alarm – Alerts if the fridge gets too hot.

💡 How does it work?

• Fans turn on automatically when temperatures reach the set point.

• A multicolour LED provides visual feedback on system operation.

• Uses smart fans moving 1640L/min per fan (3280L/min total).

• Installation is simple: Remove vent → Mount plates → Connect to power → Refit vent.

📊 Real-world results
Our test in a Jayco Penguin (Dometic fridge on 240V) showed temperatures staying below 5°C, even in 41°C ambient heat! (Results WILL vary by fridge model & installation.)

🔌 Power Requirements

• Requires 12V supply from your van’s battery system.

• 4 meters of wire included for easy connection.

• Not recommended for direct battery connection (to avoid bypassing low-voltage protection).

• If unsure, consult an auto electrician or caravan repairer.

Any questions prior to purchase of a kit will be promptly answered using our contact page.

Aust Patent: 2021101884

Design Registrations: 202012360, 202012361, 202012362

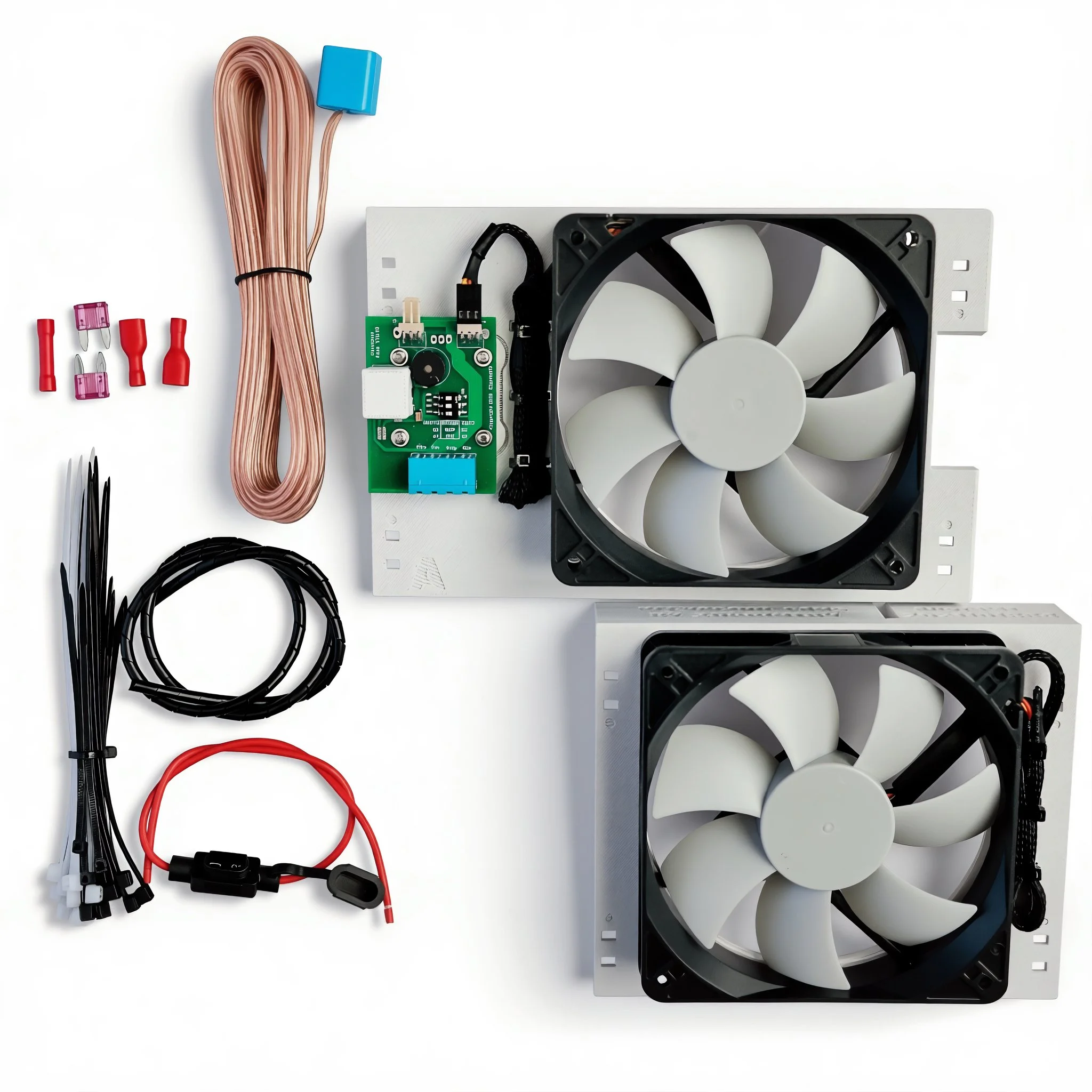

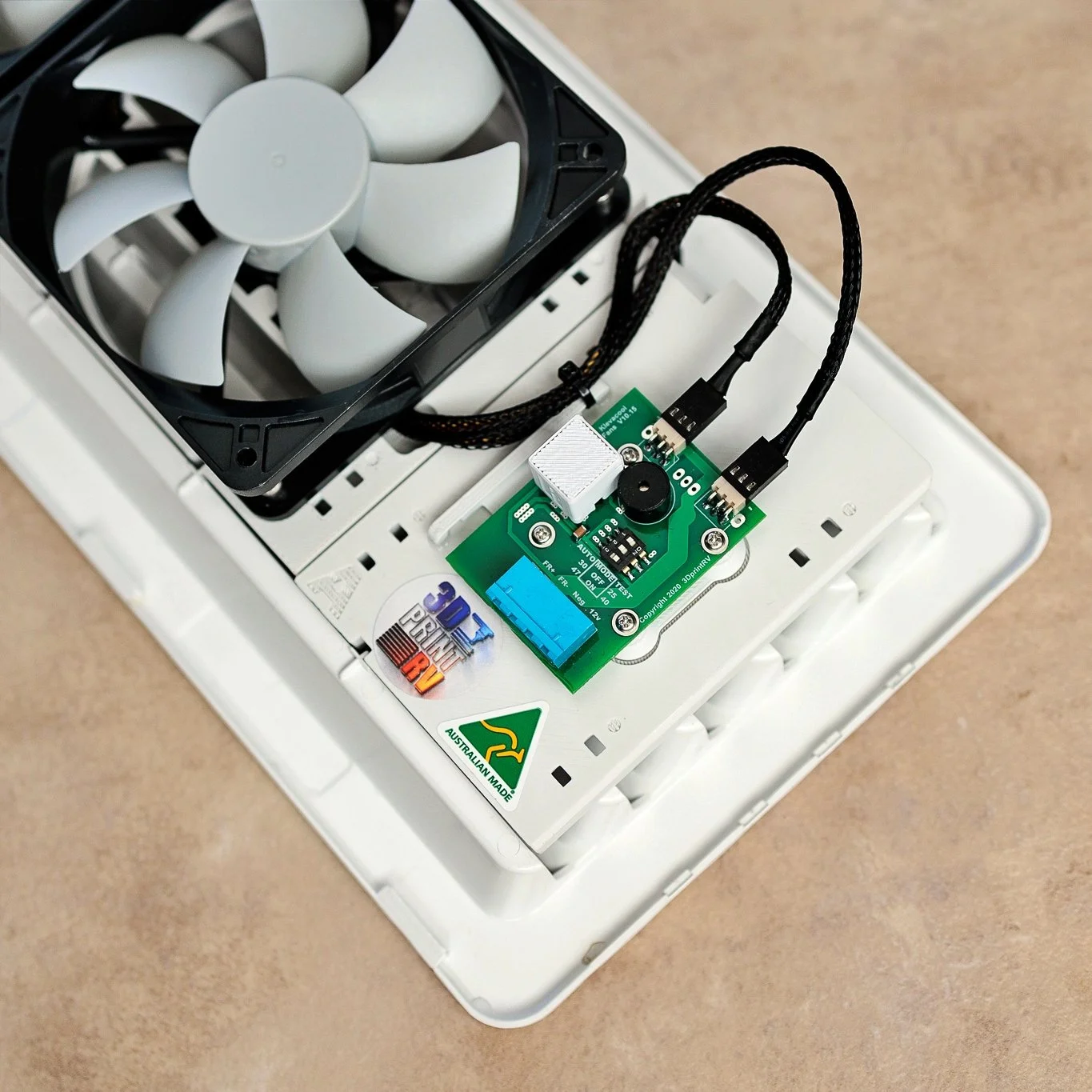

What's in the Kit?

✔ 2 x Smart 120mm brushless fans (IP68 rated, dual rubber sealed ball bearings)
✔ 1 x Klevacool fan controller
✔ 1 x Fuse holder + 2 x 3A fuses
✔ 2 x Custom 3D-printed mounting plates (with fan connector board)
✔ 4m wire for power connection
✔ Four-pin connector & spiro wrap
✔ Zip ties (black & white to match vent)
✔ Detailed step-by-step instructions + phone support

🔗 Want to monitor your fridge fans from inside your van? Check out the Klevacool™ Remote!

🛠 36-MONTH WARRANTY – BUILT TO LAST!

Frequently asked questions

Will the Klevacool small vent kit fit my caravan fridge vent?

It suits the smaller Dometic and Thetford upper fridge vents, which measure roughly 480mm x 185mm.

Measure your vent edge to edge, both across and up and down. If you're within about 5mm of those sizes, we'll have a kit to suit. If you're still not sure which vent you've got, our fan selector will point you to the right kit.

How much clearance do I need behind the vent?

At least 70mm, measured from the outside wall of the van to the closest thing inside the vent cavity.

That includes cooling fins, pipes, hoses, cables and any timber framing behind the vent's plastic frame. Good engineering in the kit still can't create clearance where the caravan builder left none.

If you're short on space, our spacer plates add 10mm, 20mm or 30mm of depth to the vent, or the Universal Fit kit may suit.

Which vent type do I choose from the drop-down?

Match your upper vent to the photos on this page, then pick late Dometic, early Dometic (which also covers older Electrolux vents) or Thetford.

Older vents held in with twist clips take the early Dometic kit. If your vent has no exhaust outlet built into it, choose the "no exhaust outlet" version of your vent type.

Why does the kit use 3D printed mounting plates?

Because we tried it without them first.

Our first set of fridge fans was basically two fans strapped to the vent with zip ties. They worked, but getting them into the right position so they fitted properly and didn't interfere with removing and refitting the vent was, to put it politely, problematic. The mounting plates hold the fans in the right spot, and a quick-disconnect connector lets the vent come off for maintenance without cutting anything.

Why do the fans go in the upper vent?

Hot air rises behind the fridge and leaves through the upper vent, so that's where the fans do their work. Pulling the hot air out draws cooler air in through the lower vent and past the fridge's cooling components.

We leave the lower vent alone because the burner on a 3-way fridge normally sits down there.

Will the fans work when my fridge is running on gas or 240V?

Yes. The fans remove heat from behind the fridge, so they do their job whichever power source the fridge is running on. They don't touch the fridge's gas or 240V system.

How much power do the small vent fans use?

Up to 0.25A for both fans, which is a maximum of 6Ah a day if they ran flat out around the clock.

The system only runs the fans when the temperature behind the vent reaches the set point, and runs them slower when full speed isn't needed, so most days they'll use less.

Can I wire the fans straight to the battery?

You can, but it’s not our preferred method. Connecting directly to the battery bypasses any low-voltage protection your van's battery system has.

Run them from your van's battery management system instead. The kit includes 4 metres of wire, a fuse holder and two 3A fuses. If you're not comfortable running the wiring, your local auto electrician or caravan repairer can do it.

What happens if something blocks a fan?

The fan stops, then restarts by itself once the blades are clear, so a stray leaf or a mud wasp nest won't burn the motor out.

The controller also has an over-temperature alarm that sounds if it gets too hot behind the vent.

Do I need the Klevacool Remote?

No. The system runs automatically without it.

The fans are quiet enough that you often can't tell whether they're running. The Klevacool Remote shows you what they're doing from inside the van and lets you switch them on or off when you want to.

Can I add internal fridge fans at the same time?

Yes. Choose an internal fan kit from the drop-down when you order and the discount is applied automatically. There are kits for 3-way fridges with cooling fins and for upright compressor fridges.

The internal fans can be connected to the Klevacool vent fan system, so they run automatically with it.
